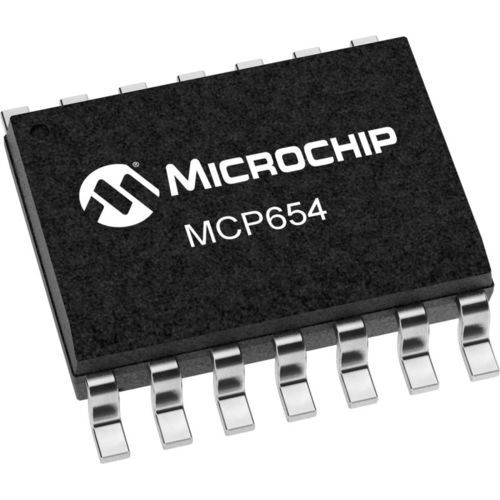

Power amplifier MCP654

voltageoperational

The MCP65x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device Product Features mCal Technology: On chip self-calibration 50MHz GBWP High Output Drive Current Rail-to-Rail Output Industry Standard Quad Amplifier Pinout AEC-Q100 Grade 1 Parametrics CMRR Min (dB) - 66 Enhanced EMI Protection - No Input Voltage Noise Density (nV/rt(Hz)) - 7.5 PM (deg) - 65 PSRR Min (dB) - 61 # Per Package - 4 Slew Rate (V/µs) - 30 Vos Max µV (microvolt) - 200
