Power measurement IC MCP1501

power measurement IC
power measurement IC
power measurement IC
power measurement IC
power measurement IC
power measurement IC
Add to favorites
Compare this product


Characteristics

Options
power measurement

Description

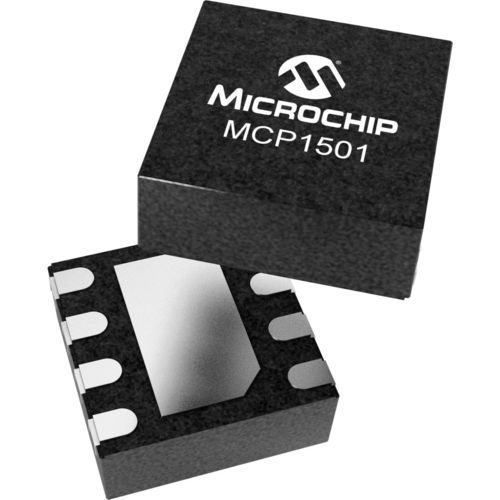

The MCP1501 is a high-precision buffered voltage reference with an initial accuracy of 0.10% and is available in 10 voltage options. The MCP1501 is a low-drift bandgap-based reference and uses chopper-based amplifiers which significantly reduces the drift and provides high current output. The MCP1501 is available in a very small 2x2 WDFN package, as well as the SOT-23 and SOIC packages. SOT-23 package is AEC-Q100 automotive qualified. Product Features Maximum Temperature Coefficient: 50 ppm/°C from -40°C to +125°C Initial Accuracy: 0.10% Operating Temperature Range: -40 to +125°C Line Regulation: 50 ppm/V maximum Load Regulation: 40 ppm/mA maximum Low Typical Operating Current: 140 µA Output Noise (.1 Hz to 10 kHz): 30 µVRMS Packages: 8L 2x2 WDFN, 6L SOT-23, 8L SOIC AEC-Q100 qualified, Grade 1 (Only SOT-23 package is automotive qualified)
