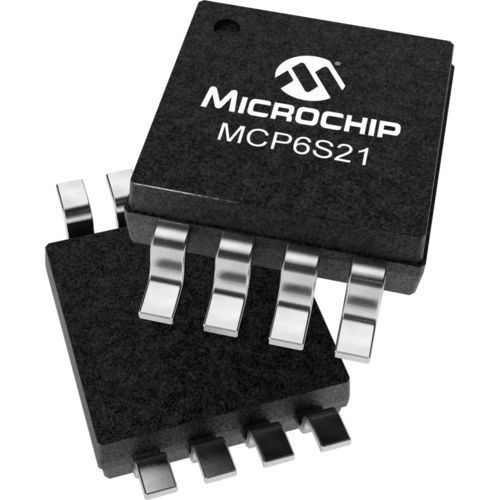

Programmable gain amplifying integrated circuit MCP6S21

currentvoltage

The MCP6S21, MCP6S22, MCP6S26, and MCP6S28 Programmable Gain Amplifiers offer 1, 2, 6 or 8 input channels respectively and eight steps of gain. These devices are programmable over an SPI bus and thus add gain control and input channel selection to the embedded control system. This is all achieved in one simple integration that allows for considerably greater bandwidth at a low supply current. Product Features SPI Bus to Control Gain Gain Error < 1% Rail-to-Rail Input and Output Low Noise: 10 nV/rHz Industrial Temperature Range: -40°C to 85°C Small 8-pin MSOP Package Parametrics Channels - 1 -3db BW (MHz) - 2 to 12 Iq Typical (mA) - 1000 Number of Gain Steps - 8
