5-axis machining center FMC series
horizontalwith pallet changer

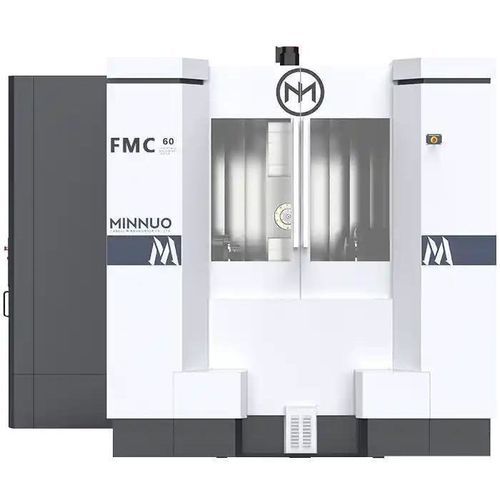

5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer - image - 2
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer - image - 3
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer - image - 4
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer - image - 5
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer - image - 6
5-axis machining center - FMC series - Minnuo - horizontal / with pallet changer - image - 7
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Other characteristics
with pallet changer
X travel

630 mm, 780 mm
(24.8 in, 30.71 in)

Y travel

620 mm, 750 mm
(24.41 in, 29.53 in)

Z travel

710 mm, 800 mm
(27.95 in, 31.5 in)

Rotational speed

8,000 rpm, 10,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1)

Table rotation (C axis)

Max.: 360 °

Min.: 1 °

Table load capacity

400 kg
(882 lb)

Tool weight (max)

8 kg, 25 kg
(17.6 lb, 55.1 lb)

Tool-changing time

Max.: 4.2 s

Min.: 1.2 s

Weight

10,000 kg, 19,000 kg
(22,046.23 lb, 41,887.83 lb)

Description

Product Overview
The FMC Series is a horizontal 5‑axis flexible manufacturing cell designed for automated multi‑face machining of small-to-medium components. Configurations include a 500×500 mm rotary table (FMC5008), up to 400 kg table load and axis travels suitable for deep cavities and large profiles.

Key Features
  • 500×500 mm rotary table: enables full 4‑face machining in one clamping cycle, reducing repositioning time.
  • Max. table load 400 kg: supports medium‑weight parts such as castings, valve bodies and gear housings.
  • Axis travels (FMC5008): X 780 mm · Y 750 mm · Z 800 mm — suitable for deep cavities and long profiles.
  • Horizontal layout with gravity‑assisted chip evacuation: improves tool life and surface quality.
  • FMS ready: integration with pallet pools, loading arms and line‑side automation.


Recommended Configurations
  • Worktable: horizontal rotary table, dual pallet system, high‑precision rotary (B + C axes).
  • Spindle: high‑precision, water‑cooled or high‑torque spindles.
  • Cooling: internal cooling, high‑pressure or mist cooling systems.
  • Automation: ATC, ATMS, automatic loading/unloading systems.
  • CNC: FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.
  • Precision: laser interferometer, thermal compensation, glass scale feedback, encoder systems.
  • Drives: high‑load servo motors, high‑speed servo motors.
  • Safety: full enclosure guards, emergency stop systems.


Application Case
  • Client: Precision machinery subcontractor (Europe).
  • Workpiece: Cast aluminium gear housing.
  • Setup: FMC with pallet changer, 60‑station ATC, rotary table, Renishaw probing.
  • Results: 4‑face machining in one setup with no manual flipping; cycle time reduced by 45% vs vertical machine with manual turning; surface finish Ra ≤ 1.0 μm; accuracy ±0.006 mm over 300 mm profile; continuous 24/7 operation with robotic loader.


Product Specifications
  • Models: FMC4008 / FMC5008.
  • Table size (mm): 400×400 / 500×500.
  • Max. table load (kg): 400 / 400.
  • Table indexing (A×C °): 1°×360° / 1°×360°.
  • Number of switching tables: 8 / 8.
  • Travel X/Y/Z (mm): 630/620/710 / 780/750/800.
  • Rapid speed (m/min): 60 / 54.
  • Spindle speed (rpm): up to 10,000 / up to 8,000.
  • Tool shank: BT40 (FMC4008) / BT50 (FMC5008); tool magazine: 40 slots.
  • Tool change time: 1.2 s (tool‑tool) / 3.4 s (cutting‑cutting) — FMC4008; 2.0 s / 4.2 s — FMC5008.
  • Max. tool weight (kg): 8 / 25. Max. tool length (mm): 350 / 500.
  • Workstation switching time (s): 5 / 6.
  • Machine weight (kg): 10,000 / 19,000. Footprint (mm): 4000×7400 / 4090×7955.


Technical Specifications
  • Series name: FMC Series.
  • Rotary table: 500×500 mm (FMC5008).
  • Maximum table load: 400 kg.
  • Axis travels (FMC5008): X 780 mm, Y 750 mm, Z 800 mm.
  • Table indexing: 1° × 360° (A × C).
  • Rapid traverse: up to 54 m/min (FMC5008) / 60 m/min (FMC4008).
  • Spindle options: up to 10,000 rpm (FMC4008) / 8,000 rpm (FMC5008).
  • Tooling: BT40 or BT50; 40‑position magazine.
  • Machine weight & footprint: from 10,000 kg and 4000×7400 mm to 19,000 kg and 4090×7955 mm.
