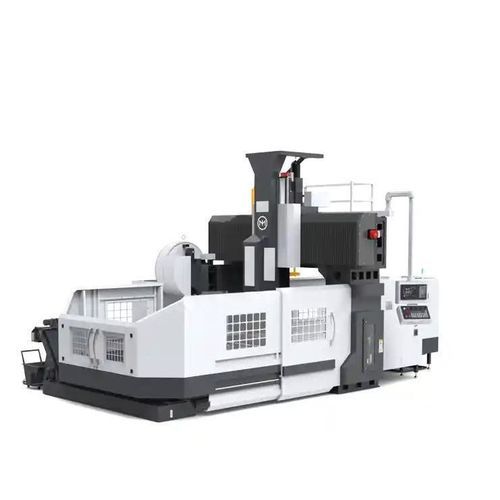

CNC drilling and milling machine XH1516

gantry type3-axisfor structural profiles

Overview
The XH1516/XH1625 Series is a high-rigidity gantry machining center designed for heavy-duty drilling, milling and complex machining of large components. It features a dual-speed gear-head spindle with through-spindle coolant capability, compatibility with CNC rotary tables and a fast automatic tool changer (ATC), delivering precision, rigidity and productivity for large plates, molds and structural parts.

Main Technical Parameters

• X-axis travel: 1600 mm
• Y-axis travel: 1500 mm
• Z-axis travel: 750/500 mm
• Spindle speed: 6000 / 3000 rpm (dual-speed)

Key Features

• Large Travel Range – 1600 mm (X), 1500 mm (Y), 750/500 mm (Z) to support a wide variety of large-part machining tasks.
• High-Rigidity Structure – Gantry-style fixed bridge design for superior rigidity and vibration damping when machining heavy workpieces.
• Spindle Options – Dual-speed gear-head spindle capable of high-speed milling and high-torque heavy cutting (6000 rpm / 3000 rpm).
• Heavy-Duty Capacity – Robust construction to handle large, complex workpieces with minimal distortion.
• Optimized CNC Control – Compatible with high-performance CNC systems for precise milling and drilling (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.).

Recommended Configurations

• Spindles: High-precision bearings (SKF, NSK); options: high-speed, air-cooled or water-cooled.
• CNC Control System: FANUC / Siemens / GSK / KND / SYNTEC / Mitsubishi (customer choice).
• Fixtures: Magnetic chuck, V-type fixture, fixed worktable fixtures.
• Drive System: Servo motor drive, linear motor drive, or dual-drive systems.
• Tool System: 40-tool chain-type tool magazine, 24-tool magazine, automatic head changing systems.
• Cooling System: High-pressure cooling, built-in cooling, mist cooling, automatic cutting fluid supply.
• Auxiliary Options: Screw chip conveyor, magnetic hinged belt chip conveyor, gantry loader, Renishaw OMP60 probe, Renishaw TS27R tool setter.

Application Case (example)

• Client: Aerospace manufacturer (USA)
• Use case: Machining of large, high-precision aerospace components
• Typical setup: XH1520 configured with automatic tool changer, high-speed spindle and coolant system
• Results achieved: Dimensional accuracy maintained within ±0.003 mm; surface finish improved to Ra ≤ 1.5 μm; production cycle time reduced by 18%

Frequently Asked / Functional Notes (product-relevant only)

• The drilling and milling gantry integrates strong drilling capacity and powerful milling torque allowing multiple processes (drilling, tapping, milling, rough/finish) in a single setup.
• Standard structure includes a high-rigidity fixed bridge, movable ram (Z-axis), servo-driven spindles and optional automatic tool changers and multi-spindle heads.
• Precision is ensured via Meehanite castings, laser calibration, spindle dynamic balancing and full-load trial machining tests prior to delivery.

Specifications

• Model / Series: XH1516 / XH1625 Series
• Structure: Gantry-style fixed bridge, high-rigidity casting
• Travels: X 1600 mm; Y 1500 mm; Z 750/500 mm
• Spindle: Dual-speed gear-head spindle (6000 rpm / 3000 rpm); options for high-speed or high-torque spindles; through-spindle coolant
• Tooling: Fast ATC; optional 24/40-tool magazines; automatic head changing system
• CNC Compatibility: FANUC / Siemens / GSK / KND / SYNTEC / Mitsubishi (selectable)
• Cooling / Chip Management: High-pressure cooling, mist cooling, automatic cutting fluid supply; screw or magnetic belt chip conveyors
• Optional Metrology & Automation: CNC rotary table, Renishaw OMP60 probe, Renishaw TS27R tool setter, gantry loader
• Typical Applications: Large structural plates, molds, machine bases, wind tower flanges, bridge plates, rail transit components, aerospace components
