Product Overview

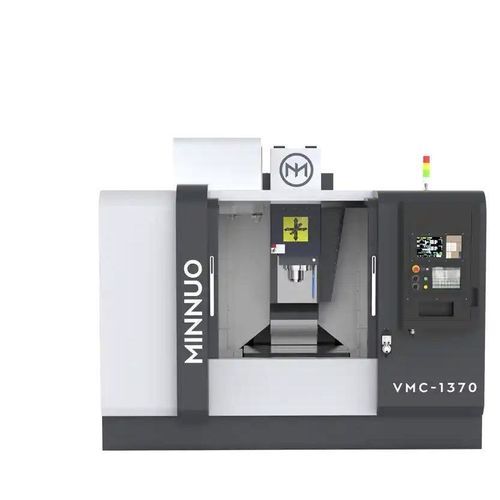

The VMC1370 is a vertical CNC machining center engineered for high-efficiency multi-step machining of mid-to-large components. It features a 1300×700×700 mm travel envelope, high rapid traverse and feed rates, and a BT40 spindle, making it suitable for mold components, structural frames, automotive parts and electronics housings.

Model Details

• X/Y/Z travel: 1300 × 700 × 700 mm
• Max. feed rate (X/Y/Z): 8000 mm/min
• Max. rapid traverse (X/Y/Z): 20/20/15 m/min

Key Features

• Large working envelope (1300×700×700 mm) — supports plates, fixtures and housing components.
• High-speed rapid traverse (20/20/15 m/min) — reduces non-cut time between operations.
• 8000 mm/min feed rate — effective for aluminum and general steel removal.
• Rigid bed and column — maintains stability and thermal consistency during heavy cutting.
• Automatic tool changer (24 tools typical) — enables uninterrupted multi-step machining sequences.

Recommended Configurations

• Spindle: high-precision spindles (SKF, NSK), optional through-spindle coolant.
• Feed system: servo motors, linear guideways, ball screws.
• Coolant: centrifugal or vibration pumps; water-soluble or oil-based coolants.
• CNC control: FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi (customer choice).
• Tooling: disc/chain/carousel tool changers as required.
• Measurement & monitoring: linear scales, tool-break detection, Renishaw probes (e.g., OMP60, TS27R).
• Automation options: chip conveyor, oil mist collector, oil cooler, coolant tank, multi-axis robot integration.

Application Case

• Client: electronics structure supplier (Thailand).
• Workpiece: aluminum alloy support frame, 1280 × 640 mm.
• Setup used: VMC1370 with 10,000 rpm spindle, 30T ATC, Siemens controller (example configuration).
• Outcome: frame milling and corner profiling completed in one setup; positioning accuracy within ±0.007 mm across the table.

Product Specifications (selected values for VMC1370)
Table size: 1500×700 mm
Table max. load: 900 kg
X/Y/Z travel: 1300×700×700 mm
Spindle center to column: 752 mm
Spindle nose to table distance: 150–850 mm
X/Y/Z max. feed speed: 8000 mm/min
X/Y/Z max. rapid traverse: 20/20/15 m/min
Spindle speed: 8000 r/min (standard)
Spindle taper: BT40
Spindle motor power: 11/15 kW
Axis servo power (X/Y/Z): 4/4/5 kW (typical)
Guide way: three-way guideway
T-slot: 5-18×145 mm
Repeatability: ±0.005 mm
Tool magazine: disc, 24 tools (typical)
Max. tool weight: 8 kg; max. tool length: 300 mm
Electrical capacity: 22 kVA
Machine dimensions (L×W×H): 3600×3000×2700 mm
Approx. net weight: 11000 kg

Technical Specifications

• Model / Series: VMC1370
• Work envelope (X×Y×Z): 1300 × 700 × 700 mm
• Table: 1500 × 700 mm, max load 900 kg
• Max. feed rate: 8000 mm/min
• Max. rapid traverse: 20/20/15 m/min (X/Y/Z)
• Spindle: 8000 r/min (standard), BT40 taper
• Spindle power: 11/15 kW (typical)
• Tool magazine: disc ATC, 24 tools (typical); max tool weight 8 kg, length 300 mm
• Repeatability: ±0.005 mm
• Typical controls: FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi
• Options: coolant systems, chip conveyor, Renishaw probing, various ATC types, automation
• Footprint (L×W×H): ~3600×3000×2700 mm; weight ~11000 kg
