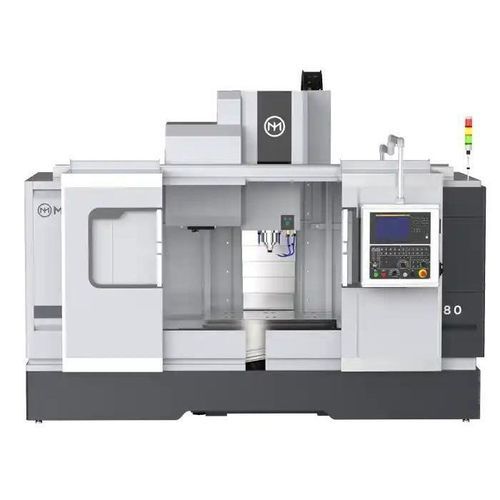

3-axis machining center VMC 1580verticalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for aluminum
- Structure
- column type
- Spindle mount
- BT 50
- Number of tool stations
- 24 tools, 40 tools
- Associated functions
- milling
- Applications
- for large workpieces, for molds, for the aluminum industry, for aluminum plates
- Other characteristics
- high-performance, high-precision, high-rigidity, high feed rate, with automatic tool changer, with tool changer, disc
- X travel
1,500 mm
(59.06 in)- Y travel
800 mm
(31.5 in)- Z travel
700 mm
(27.56 in)- Rotational speed
Min.: 6,000 rpm
(37,699 rad.min-1)Max.: 10,000 rpm
(62,832 rad.min-1)- Power
Min.: 15 kW
(20.39 hp)Max.: 18 kW
(24.47 hp)- Workpiece max height
Min.: 150 mm
(6 in)Max.: 900 mm
(35 in)- Work feed X-axis
166.67 mm/s
- Work feed Y-axis
166.67 mm/s
- Work feed Z-axis
16 m/min
- Table load capacity
1,500 kg
(3,307 lb)- Repeatability
0.005 mm
(0.0002 in)- Weight
12,000 kg
(26,455.47 lb)- Overall length
4.3 m
(14'01" )- Overall width
3.5 m
(11'05" )- Overall height
3.2 m
(10'05" )
Description
Overview
The VMC 1580 is a high-speed vertical CNC machining center engineered for medium to large components. It offers X/Y/Z travels of 1500 × 800 × 700 mm and is suited to machining large dies, structural plates, aluminum frames and machine parts. High feed and rapid traverse capabilities reduce non-cutting times in production.
Highlighted Performance
Key Features
Recommended Configurations
Application Case (example)
Product Specifications (selection)
Technical specifications
The VMC 1580 is a high-speed vertical CNC machining center engineered for medium to large components. It offers X/Y/Z travels of 1500 × 800 × 700 mm and is suited to machining large dies, structural plates, aluminum frames and machine parts. High feed and rapid traverse capabilities reduce non-cutting times in production.
Highlighted Performance
- Rapid traverse: 20 m/min (X/Y), 16 m/min (Z)
- Maximum feed rate: 10,000 mm/min
- Table and support designed for large workpieces and heavy fixtures
Key Features
- Generous axis travel (1500×800×700 mm): Accepts large molds, plate-type workpieces and assemblies.
- Ultra-fast traverse speeds: X/Y 20 m/min · Z 16 m/min to minimize idle time.
- High feed capability (10,000 mm/min): Efficient roughing and finishing of aluminum, steel and general engineering materials.
- Heavy-duty cast iron structure: Rigid base and column absorb vibration for improved dimensional accuracy.
- Flexible tooling system: Automatic tool changer options (typical 24–40 tools) for multi-step machining in a single setup.
Recommended Configurations
- Spindle system: High-precision spindles (SKF, NSK), center coolant spindle options.
- Feed system: Servo or stepper motors, linear guideways and ball screws.
- Cooling system: Centrifugal or vibration pump; compatible with water-soluble and oil-based coolants.
- CNC control: Compatible with FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.
- Measuring & monitoring: Heidenhain linear scales, Renishaw probes (OMP60/TS27R), tool breakage detection options.
- Other options: Chip conveyor, oil mist collector, oil cooler, coolant tank, multi-joint robot arm.
Application Case (example)
- Workpiece: Aluminum alloy mold base 1420 × 780 × 90 mm.
- Setup: VMC 1580 with 10,000 rpm spindle, 30T ATC, Siemens controller.
- Results: Full roughing and finishing in one setup; surface roughness Ra ≤ 1.2 μm; flatness within 0.01 mm; cycle time reduced by ~27% and manual finishing decreased.
Product Specifications (selection)
- Table size: 1700×800 mm
- Table maximum load: 1500 kg
- X/Y/Z travels: 1500 × 800 × 700 mm
- Distance spindle center to column: 871 mm
- Distance spindle nose to table surface: 150–900 mm
- Max. feed speed: 10,000 mm/min
- Max. rapid traverse: 20 / 20 / 16 m/min
- Spindle speed: 6000 r/min (VMC1580)
- Spindle taper: BT50
- Spindle motor power: 15/18 kW
- Axis servo motor power (X/Y/Z): 4.5/4.5/4.5 kW
- Guide way type: Two lines and one hard guide
- T-slots: 5-22×145 mm
- Repeat positioning accuracy: ±0.005 mm
- Tool magazine: Disc type, typical 24T (configurable)
- Max. tool length: 300 mm
- Electric capacity: 30 kVA
- Machine dimensions (L×W×H): 4260×3545×3200 mm
- Net weight (approx): 12,000 kg
Technical specifications
- Model: VMC 1580
- X/Y/Z travels: 1500 × 800 × 700 mm
- Max. feed speed: 10,000 mm/min
- Rapid traverse (X/Y/Z): 20 / 20 / 16 m/min
- Spindle speed: 6000 r/min
- Spindle taper: BT50
- Spindle motor power: 15/18 kW
- Table maximum load: 1500 kg
- Repeat positioning accuracy: ±0.005 mm
- Tool magazine: Disc type, typical 24 tools (configurable)
- Typical options: Heidenhain linear scales, Renishaw probes, chip conveyor, oil mist collector, coolant tank
