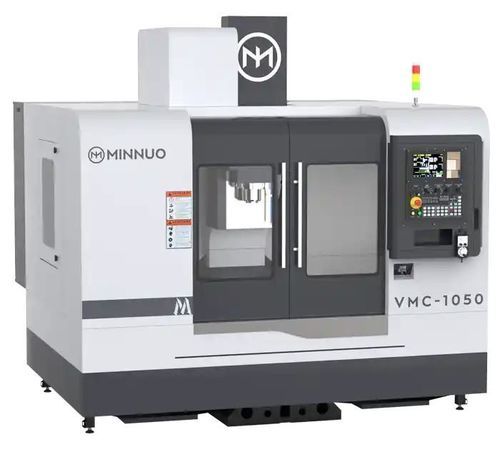

3-axis machining center VMC1050

verticalBT 4024 tools

Overview
The VMC1050 is a 3-axis CNC vertical machining center engineered for medium-sized parts and mold components in industrial applications such as automotive and aerospace. It delivers high-speed machining, rigid structural stability and multi-operation flexibility for milling, drilling, tapping and boring.

Model Details

• X, Y, Z travel: 1000 × 500 × 600 mm
• Maximum feed rate (X/Y/Z): 10,000 mm/min
• Maximum rapid traverse (X/Y/Z): 32 / 32 / 24 m/min

Key Features

• Travel Range: 1000 mm (X), 500 mm (Y), 600 mm (Z) suited to medium-sized components and molds.
• High-Speed Capability: Max feed 10,000 mm/min and rapid traverse up to 32 m/min on X/Y axes to reduce cycle time.
• Multi-Operation: Supports milling, drilling, tapping, boring and common machining tasks in a single setup.
• Precision & Repeatability: Repeat positioning accuracy ±0.004 mm for tight tolerance production.
• Rigid Construction: Robust design to maintain stability during heavy cutting and long cycles.

Recommended Configurations

• Spindle: High-precision options (SKF, NSK); optional center coolant spindle.
• Feed Drive: Servo motors with ball screws and linear guideways.
• Cooling: Centrifugal or vibration pumps; water-soluble or oil-based coolant systems.
• CNC Control: FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi (high-performance controllers supported).
• Tooling: Disc, chain-type or linear tool changers.
• Probing & Monitoring: Heidenhain linear scales, Renishaw probes (OMP60, TS27R), tool breakage detection.
• Optional Equipment: Chip conveyor, oil mist collector, oil cooler, coolant tank, multi-axis robot integration.

Application Case

• Workpiece: Precision mold cavities and small structural components.
• Setup: VMC1050 fitted with automatic tool changer and chip conveyor for combined roughing and finishing.
• Outcome: Achieved tight tolerances (example ±0.005 mm on complex mold features), ~20% cycle time reduction via high-speed cutting and automated tool changes, improved surface finish and reduced tool wear with optimized cooling.
• Customer Benefit: Increased throughput by consolidating rough and finish operations in a single setup.

Product Specifications (excerpt from comparison table)
Specifications | unit | VMC650 | VMC855 | VMC1050 | VMC1160 | VMC1370 | VMC1580
Table size | mm | 900×400 | 1000×550 | 1000×530 | 1200×600 | 1500×700 | 1700×800
Table max load | kg | 350 | 500 | 600 | 1000 | 900 | 1500
X/Y/Z travel | mm | 650×400×500 | 800×550×550 | 1000×500×600 | 1100×600×600 | 1300×700×700 | 1500×800×700
Spindle center–column | mm | 476 | 590 | 580 | 650 | 752 | 871
Spindle end–table | mm | 100-600 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900
X/Y/Z max feed | mm/min | 10000 | 10000 | 10000 | 10000 | 8000 | 10000
X/Y/Z rapid | m/min | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16
Spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 | 6000
Spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 | BT50
Spindle motor | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18
VMC1050 servo power | kW | — | — | 3.9/3.9/3.6 | — | — | —

Technical specifications

• Model: VMC1050
• X/Y/Z travel: 1000 × 500 × 600 mm
• Table max load: 600 kg
• Distance spindle center–column: 580 mm
• Spindle end face to table: 140–740 mm
• Max feed speed: 10,000 mm/min
• Max rapid traverse: 32 / 32 / 24 m/min (X/Y/Z)
• Spindle speed: 8,000 r/min
• Spindle taper: BT40
• Spindle motor power: 7.5 / 11 kW
• X/Y/Z servo motor power: 3.9 / 3.9 / 3.6 kW
• Guide way type: rails
• T-slot: 5-18×90 mm
• Repeat positioning accuracy: ±0.004 mm
• Tool magazine: Disc type, capacity 24 tools
• Max tool weight: 8 kg
• Max tool length: 250 / 300 mm
• Electric capacity: 15 kVA
• Machine dimensions (L×W×H): 3200 × 2420 × 2400 mm
• Net weight (approx.): 6000 kg
