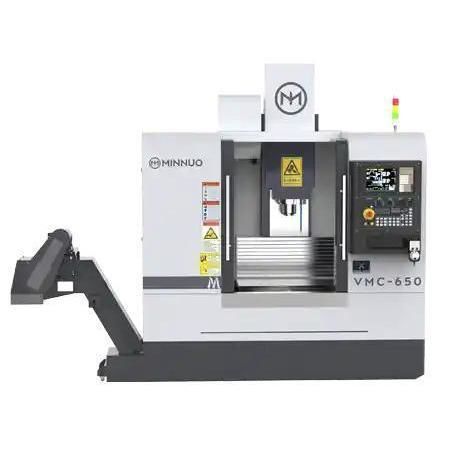

3-axis CNC machining center VMC650

verticalmillingtapping

Product Overview
The VMC650 is a CNC vertical machining center designed for milling, drilling, tapping and boring of medium-sized components and molds. It combines a rigid mechanical structure with precision components to deliver consistent accuracy across roughing and finishing operations, suitable for industrial production environments.

Main Model Details

• X/Y/Z axis travel: 650 x 400 x 500 mm
• Maximum feed rate (X/Y/Z): 10,000 mm/min
• Maximum rapid traverse (X/Y/Z): 32/32/30 m/min

Key Features

• Travel Range: 650 mm (X) × 400 mm (Y) × 500 mm (Z) for medium-size workpieces and molds.
• High-speed capability: Max feed 10,000 mm/min and rapid traverse up to 32 m/min on X/Y.
• Multi-process machining: Supports milling, drilling, tapping and boring in a single setup.
• Precision components: Designed for accurate machining of complex geometries with repeatability ±0.004 mm.
• Robust construction: Rigid frame and linear guideways to maintain stability under heavy cuts.

Recommended Configurations

• Worktable: Fixed worktable or rotary table
• Spindle: High-precision, high-speed or high-torque spindle options
• Cooling: Internal cooling, high-pressure cooling, mist cooling
• Drive system: Servo motor drive, linear motor drive, high-load servo
• CNC control: FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.
• Automation: Automatic tool changer (ATC), automatic tool measurement, automatic loading/unloading
• Accuracy aids: Laser interferometer, thermal compensation, linear scale feedback
• Vibration control: Active vibration control, intelligent vibration compensation
• Safety: Full enclosure, emergency stop system

Application Case

• Client: Precision mold manufacturer (South Korea)
• Workpiece: Complex mold cavities and metal parts
• Setup: VMC650 equipped with automatic tool changer and chip conveyor
• Results: Achieved tolerances of ±0.005 mm on intricate cavities; machining time reduced by ~20% due to high-speed cutting and rapid traverse; improved surface finish and reduced tool wear; roughing and finishing completed in one setup.
• Client feedback: Increased throughput and precision, streamlined workflow.

Product Specifications

• Table size: 900 × 400 mm
• Table maximum load: 350 kg
• Spindle center to column distance: 476 mm
• Spindle nose to table distance: 100–600 mm
• Spindle speed: 8,000 rpm
• Spindle taper: BT40
• Spindle motor power: 5.5 / 7.5 kW
• Axis servo power (X/Y/Z): 2.6 / 2.6 / 2.8 kW
• Guide way type: Linear rails
• T-slots: 3 × 18 × 125 mm
• Repeatability: ±0.004 mm
• Tool magazine: Bucket / Disc, capacity 16 tools
• Max tool weight: 7 kg
• Max tool length: 250 / 300 mm
• Electrical capacity: 10 kVA
• Machine dimensions (L×W×H): 2300 × 2000 × 2300 mm
• Approx. net weight: 4,500 kg
