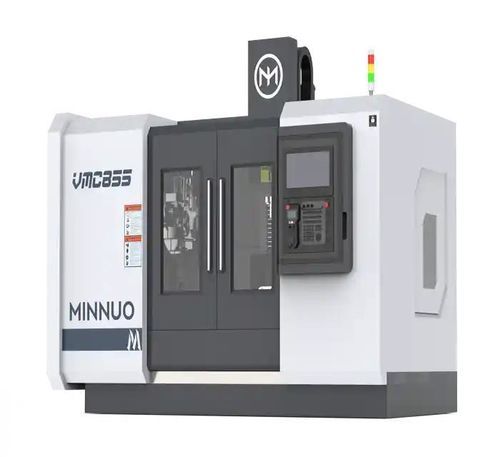

3-axis CNC machining center VMC855

verticalmillingtapping

Product Overview
The VMC855 is a CNC vertical machining center designed for high-precision machining of medium-sized components and molds. It supports milling, drilling, tapping and boring operations with a large travel range and stable, rigid construction for consistent results in production environments.

Key Features

• Large travel range: X 800 mm, Y 550 mm, Z 550 mm — suitable for medium-sized components and molds.
• High-speed machining: Maximum feed rate 10,000 mm/min and rapid traverse up to 32 m/min for efficient cycle times.
• Versatile operations: Milling, drilling, tapping, boring and multi-operation capability.
• Precision performance: Repeat positioning accuracy ±0.004 mm for tight tolerances in roughing and finishing.
• Stable machine design: Rigid structure to handle large or heavy workpieces while maintaining accuracy.

Recommended Configurations

• Spindle system: High-precision spindles (SKF, NSK), center coolant spindle options.
• Feed system: Servo motor or stepper motor configurations; linear guideways and ball screws.
• Cooling system: Centrifugal or vibration pumps; water-soluble or oil-based coolant systems.
• CNC control: Compatible with FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.
• Tooling system: Disc, chain-type or linear tool changers.
• Measuring & monitoring: Heidenhain linear scales; Renishaw OMP60/TS27R probes; tool-breakage detection.
• Other options: Chip conveyor, oil mist collector, oil cooler, cooling water tank, multi-joint robot arm.

Application Case

• Client: Automotive parts manufacturer (Japan).
• Workpieces: Precision engine components and transmission parts.
• Results: Achieved tight tolerances (±0.005 mm), improved surface finish, reduced cycle time, high repeatability and increased throughput.

Product Specifications (excerpt for VMC855)
Specifications | unit | VMC855
Table size | mm | 1000×550
Table maximum load | kg | 500
X/Y/Z axis travel | mm | 800×550×550
Distance between spindle center and column | mm | 590
Distance between spindle end face and worktable surface | mm | 120-670
X/Y/Z Max. feed speed | mm/min | 10000
X/Y/Z Max. Rapid traverse | m/min | 32/32/30
Spindle speed | r/min | 8000
Spindle taper | type | BT40
Spindle motor power | kW | 7.5/11
X/Y/Z axis servo motor power | kW | 3.9/3.9/3.6
Guide way type | - | rails
Repeat positioning accuracy | mm | ±0.004
Tool magazine | - | Disc (tool changer)
Tool capacity | - | 24T
Maximum tool weight | kg | 8
Max. tool length | mm | 300
Electric capacity | kVA | 15
Machine dimension (L×W×H) | mm | 2600×2380×2700
Net weight (about) | kg | 5000

Technical Specifications

• Model: VMC855
• X/Y/Z travel: 800 × 550 × 550 mm
• Table size: 1000 × 550 mm
• Table maximum load: 500 kg
• Maximum feed rate (X/Y/Z): 10,000 mm/min
• Maximum rapid traverse (X/Y/Z): 32/32/30 m/min
• Spindle speed: 8000 r/min
• Spindle taper: BT40
• Spindle motor power: 7.5/11 kW
• X/Y/Z servo motor power: 3.9/3.9/3.6 kW
• Repeat positioning accuracy: ±0.004 mm
• Tool capacity: 24 tools (disc)
• Maximum tool weight: 8 kg
• Machine dimensions (L×W×H): 2600×2380×2700 mm
• Approx. net weight: 5000 kg
