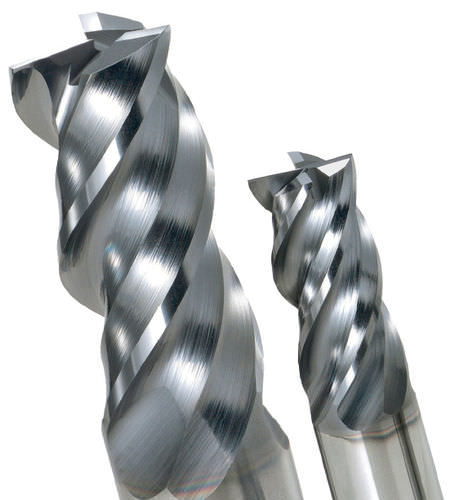

End mill Smart Miracle series
solidfinishingfor titanium

end mill
end mill
end mill
Add to favorites
Compare this product


Characteristics

Geometry
end mill
Construction
solid
Type
finishing
Treated material
for titanium
Other characteristics
with cylindrical shank
Diameter

Max.: 25 mm
(0.98 in)

Min.: 1 mm
(0.04 in)

Rotational speed

Max.: 40,000 rpm
(251,327.41 rad.min-1)

Min.: 480 rpm
(3,015.93 rad.min-1)

Description

Smart Miracle Coating The latest development of the original and highly successful Miracle coating is called Smart Miracle. This series of end mills have been treated with a newly developed (Al, Cr)N group coating that delivers substantially better wear resistance. The surface of the coating has been given a smoothening treatment resulting in better machined surfaces, reduced cutting resistance and improved chip discharge. This is the next generation of coated end mills that delivers long tool life and is the first choice when machining stainless steels, titanium alloys, Inconel and other difficult-to-cut materials.
