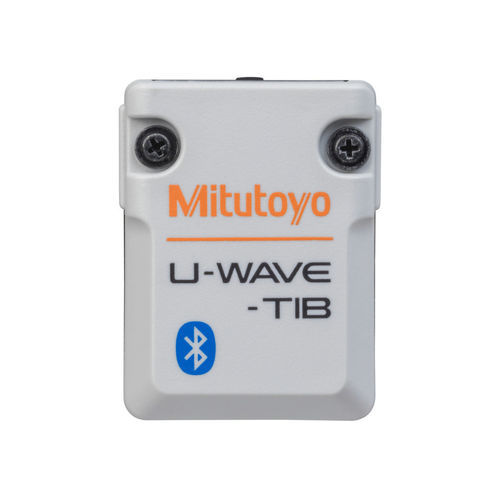

Bluetooth communication module U-WAVE-TIB

data transmissionwirelessbi-directional

Overview
Compact wireless transceiver designed for bidirectional transfer of measurement data. Enables display of measurement results and configuration of measurement conditions via Bluetooth, streamlining measurement workflows in industrial environments.

Main features

• Display of measurement results
• Configuration of measurement conditions
• Bidirectional communication for data send/receive

Specifications (table)
Model: U-WAVE-TIB
Code No.: 264-628
Wireless standard: Bluetooth 5.0 Low Energy
Communication range: approx. 5 m
Transmit power: 2.5 mW (class 2)
Modulation: GFSK (Gaussian Frequency Shift Keying)
Frequency band: 2.4 GHz
Dimensions: 21.5 x 29.1 x 9.5 mm
Mass: 5 g
Compatibility: Pairing OS: Windows 10 Pro or later, Android 12 or later (both require Bluetooth 5.0 Low Energy or later). Connection limits: up to 7 Android smartphones / 1 Windows PC. Function: data send/receive (bidirectional). Operating temperature: 0°C to 50°C (20–80% RH, non-condensing). Storage temperature: -10°C to 60°C (20–80% RH, non-condensing).

Functions & supported platforms

• Supported OS: Windows 10 Pro or later, Android 12 or later (devices with Bluetooth 5.0 Low Energy)
• Connection capacity: up to 7 Android smartphones, 1 Windows PC
• Main function: bidirectional transfer of measurement data

Special notes
Product images are for illustration only. Actual product may differ. Check current stock and lead times with your distributor.

Technical specifications

• Model: U-WAVE-TIB
• Code No.: 264-628
• Wireless standard: Bluetooth 5.0 Low Energy
• Communication range: approx. 5 m
• Transmit power: 2.5 mW (class 2)
• Modulation: GFSK
• Frequency band: 2.4 GHz
• Dimensions: 21.5 x 29.1 x 9.5 mm
• Mass: 5 g
• Supported OS: Windows 10 Pro or later, Android 12 or later (Bluetooth 5.0 LE compatible)
• Connection limits: Android up to 7 devices, Windows PC 1 device
• Function: bidirectional transfer of measurement data
• Operating temperature: 0°C to 50°C (20–80% RH, non-condensing)
• Storage temperature: -10°C to 60°C (20–80% RH, non-condensing)
