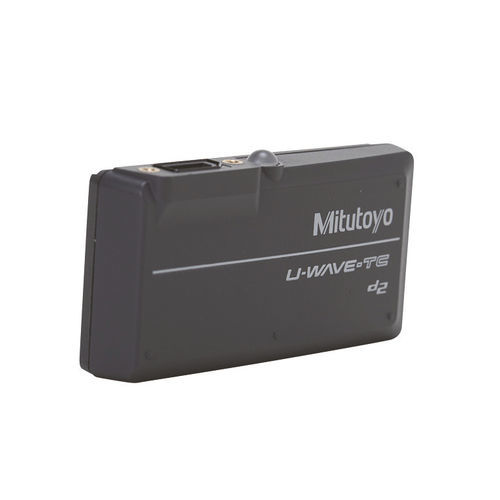

Low-power wireless sensor transmitter U-WAVE-TC/TM

with indicator lightLED

Product overview
The U-WAVE-TC/TM transmits measurement readings from compatible digimatic measuring instruments wirelessly to a U-WAVE-R receiver, enabling centralized data collection on a PC.

Key features

• Compact, low-profile transmitter designed specifically for digimatic measuring tools while inheriting core functions of the U-WAVE family.
• Proprietary communication scheme optimized for stable links and low power consumption.
• One U-WAVE-R can connect up to 100 transmitters; typical line-of-sight range is about 20 m, allowing consolidation of factory measurement data to a single PC.
• Wireless operation eliminates cables, improving ease of measurement tasks and workflow efficiency.
• When combined with optional USB-ITPAK V2.1/V3.0 software, supports Excel-based workflows (import multiple instruments to separate sheets, simultaneous batch input, etc.).

Characteristics / Specifications (U-WAVE-TC (IP67 type) - Code No.264-620)

• Code No.: 264-620
• List price (excl. tax): ¥26,600
• Ingress protection: IP67
• Unit type: Transmitter unit
• Acknowledgement indicator: LED
• Wireless communication standard (applicable): ARIB STD-T66 (Japan)
• Wireless scheme: Proprietary (IEEE802.15.4-based)
• Wireless range: Approx. 20 m (line-of-sight)
• Data rate: 250 kbps
• Transmission power: 2.5 mW (≤4 dBm)
• Modulation: DS-SS (Direct Sequence Spread Spectrum)
• Operating frequency: 2.4 GHz band (ISM band, worldwide)
• Channels: 15 ch (2.405–2.475 GHz, 5 MHz spacing); noise-search function to avoid interference
• Mass: Approx. 20 g
• Power supply: Lithium battery CR2032 × 1
• Battery life: Continuous transmission approx. 400,000 times
• Other: Automatically recognizes Digimatic (6-digit) and Digimatic2 (8-digit); transmits measurement data including cancel/error commands; U-WAVE-R search function included; Operating temperature: 0°C–40°C (20–80% RH, non-condensing); Storage temperature: -10°C–60°C (20–80% RH, non-condensing)
