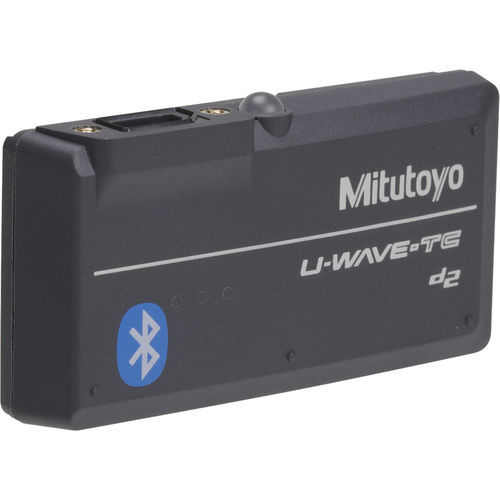

Low-power wireless sensor transmitter U-WAVE-TCB

sealedLEDwith indicator light

Overview
Bluetooth® communication enables wireless transmission of measurement data from digimatic micrometers, calipers and indicators to PCs, smartphones and tablets.

Main features

• Transmits measurement data from digimatic-output micrometers, calipers and indicators to PCs, smartphones and tablets via Bluetooth®.
• Bluetooth® communication removes the need for the dedicated receiver unit (U-WAVE-R), improving mobility and reducing costs. Use in outdoor locations without a PC is simplified.
• The dedicated smartphone/tablet application U-WAVEPAK-BM for measurement support can be downloaded free from app stores.
• Communication software U-WAVEPAK-BW is available to transfer measurement data to optional PC software (USB-ITPAK, MeasurLink®).

Specifications (comparison)
Code | U-WAVE-TCB (IP67 type) | U-WAVE-TCB (buzzer type) | U-WAVE-TMB (IP67 type) | U-WAVE-TMB (buzzer type)
Product No. | 264-624 | 264-625 | 264-626 | 264-627
List price (excl. tax) | ¥ 30,300 | ¥ 30,300 | ¥ 30,300 | ¥ 30,300
Unit type | Transmitter unit | Transmitter unit | Transmitter unit | Transmitter unit
Confirmation indicator | LED | Buzzer・LED | LED | Buzzer・LED
Wireless standard (regulation) | ARIB STD-T66 | ARIB STD-T66 | ARIB STD-T66 | ARIB STD-T66
Wireless standard (protocol) | Bluetooth 4.2 Low Energy | Bluetooth 4.2 Low Energy | Bluetooth 4.2 Low Energy | Bluetooth 4.2 Low Energy
Wireless range | Approx. 16 m (open space), approx. 10 m (factory environment) | Approx. 16 m (open space), approx. 10 m (factory environment) | Approx. 16 m (open space), approx. 10 m (factory environment) | Approx. 16 m (open space), approx. 10 m (factory environment)
Transmit power | ≤ 3.2 mW (5 dBm) (class 2) | ≤ 3.2 mW (5 dBm) (class 2) | ≤ 3.2 mW (5 dBm) (class 2) | ≤ 3.2 mW (5 dBm) (class 2)
Modulation | FH-SS (frequency-hopping spread spectrum) | FH-SS (frequency-hopping spread spectrum) | FH-SS (frequency-hopping spread spectrum) | FH-SS (frequency-hopping spread spectrum)
Frequency band | 2.4 GHz band | 2.4 GHz band | 2.4 GHz band | 2.4 GHz band
Mass (g) | 20 | 20 | 20 | 20
Power supply | Lithium battery CR2032 × 1 | Lithium battery CR2032 × 1 | Lithium battery CR2032 × 1 | Lithium battery CR2032 × 1
Battery life | Windows: approx. 3 months; iOS/Android: approx. 1 year | Windows: approx. 3 months; iOS/Android: approx. 1 year | Windows: approx. 3 months; iOS/Android: approx. 1 year | Windows: approx. 3 months; iOS/Android: approx. 1 year
Other | Communication with measuring instruments: Digimatic (6-digit), Digimatic2 (8-digit) auto-detection. Transmits measurement data including cancel and error commands. Operating temperature: 0°C to 40°C (20–80% RH, non-condensing). Storage temperature: -10°C to 60°C (20–80% RH, non-condensing).

Features & specifications (U-WAVE-TCB (IP67 type) excerpt)

• Product No.: 264-624
• List price (excl. tax): ¥30,300
• Unit type: Transmitter unit
• Confirmation: LED
• Applicable standard: ARIB STD-T66
• Wireless protocol: Bluetooth 4.2 Low Energy
• Wireless range: Approx. 16 m (open space), approx. 10 m (factory environment)
• Transmit power: ≤ 3.2 mW (5 dBm) (class 2)
• Modulation: FH-SS (frequency-hopping spread spectrum)
• Frequency band: 2.4 GHz band
• Mass: Approx. 20 g
• Power supply: Lithium battery CR2032 × 1
• Battery life: Windows approx. 3 months; iOS/Android approx. 1 year
• Communication with measuring instruments: Auto-detection of Digimatic (6-digit) and Digimatic2 (8-digit); transmits measurement data including cancel and error commands
• Operating temperature: 0°C to 40°C (20–80% RH, non-condensing)
• Storage temperature: -10°C to 60°C (20–80% RH, non-condensing)
