Non-contact dimensional inspection system QM-Fit

Product overview

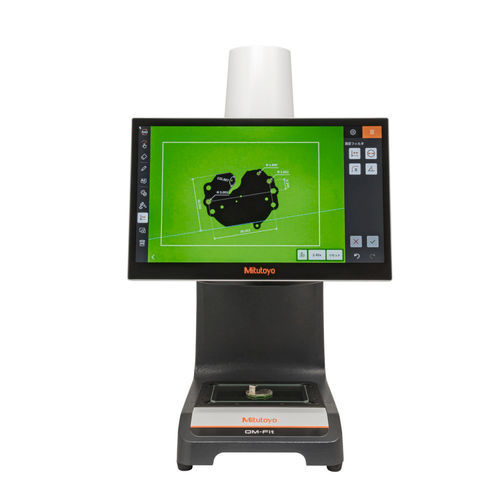

Image-based measurement system for dimensional inspection with advanced feature recognition. Compact A3 footprint and an intuitive 15.6-inch touch panel make it suitable for shop-floor placement and quick part checks.

Main features

• Compact A3-sized body for flexible installation in limited spaces.
• Measurement range of 115×75 mm, sufficient for small part inspection.
• Long depth-of-field lens eliminates refocusing for surface variations up to 36 mm.
• 15.6-inch touch panel display for intuitive operation and on-site use.
• Automatic feature detection and procedure recording allow one-touch measurement after part placement.

Specifications (key items)

• Model: QMF-A1208-A
• Display device: 15.6-inch touch panel monitor
• Measurement range (usable): 115×75 mm
• Measurement range (accuracy-guaranteed): 90×60 mm
• Maximum measurable height: 36 mm
• Transmitted illumination: green LED
• Ring illumination: 8-segment white LED
• External I/O: LAN ×1, USB3.2 ×2
• Digital zoom: 1–100×
• Accuracy guarantee temperature range (°C): 20±1°C
• Maximum load (measurable workpiece mass): 10 kg
• Stage glass dimensions: 154×96 mm
• Unit dimensions (W×D×H): 366×407×621 mm
• Unit mass: 25 kg
• Power supply: AC100–240V 50/60Hz
• Power consumption: 100 W

Notes
Measurement accuracy is based on our inspection methods. Maximum load excludes extreme eccentric or concentrated loads. Using the supplied reference chart enables high-accuracy measurements even outside 20°C.
