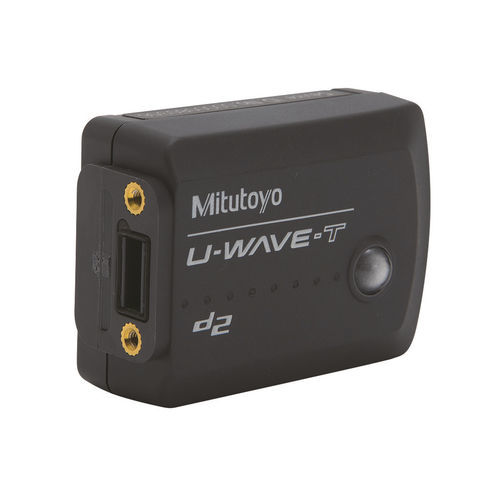

Low-power wireless sensor transmitter U-WAVE-T

LEDsealedwith indicator light

Product description
The U-WAVE-T is a wireless transmission unit that sends measurement data displayed on measurement instruments to the U-WAVE-R receiver. It can be mounted on various gauges using an optional dedicated cable and supports automatic identification of Digimatic (6-digit) and Digimatic2 (8-digit) communications.

Main features

• Manufacturer-specific communication method designed for stable links and low power consumption.
• Optional dedicated connection cables enable attachment to a wide range of tools and gauges.
• Available variants: IP67 type and buzzer type with LED indication for reception confirmation.
• Wireless operation in the 2.4 GHz ISM band with DS-SS modulation to resist interference.

Specifications (excerpt)
Model: U-WAVE-T (IP67 type) / U-WAVE-T (buzzer type)
Code No.: 02AZD730G / 02AZD880G
List price (excl. tax): ¥22,100 / ¥22,100
Protection rating: IP67 / (not specified)
Unit type: Transmit unit / Transmit unit
Reception confirmation: LED / Buzzer + LED
Applicable radio standard: ARIB STD-T66 (Japan) / ARIB STD-T66 (Japan)
Wireless range: approx. 20 m (line of sight) / approx. 20 m (line of sight)
Data rate: 250 kbps / 250 kbps
Transmit power: ≤1 mW (0 dBm) / ≤1 mW (0 dBm)
Modulation: DS-SS (direct-sequence spread spectrum) / same
Frequency band: 2.4 GHz ISM band (worldwide) / same
Used bands: 15 ch (2.405–2.475 GHz, 5 MHz steps) with noise-search function to avoid interference / same
Dimensions: 44 × 29.6 × 18.5 mm / 44 × 29.6 × 18.5 mm
Mass: 23 g / 23 g
Power supply: 1 × CR2032 lithium battery / 1 × CR2032 lithium battery
Battery life: approx. 400,000 continuous transmissions / approx. 400,000 continuous transmissions
Other: Functions include sending measurement data (cancel/error commands), U-WAVE-R search, automatic identification of Digimatic/Digimatic2; Operating temperature: 0°C to 40°C (20–80% RH, non-condensing); Storage temperature: -10°C to 60°C (20–80% RH, non-condensing).

Features / Technical specifications (summary)

• Model: U-WAVE-T
• Code No.: 02AZD730G
• List price (excl. tax): ¥22,100
• Protection rating: IP67 (IP67 type)
• Wireless range: approx. 20 m (line of sight)
• Data rate: 250 kbps; Frequency: 2.4 GHz ISM band
• Modulation: DS-SS (direct-sequence spread spectrum)
• Transmit power: ≤1 mW (0 dBm)
• Power supply: 1 × CR2032 lithium battery; Battery life: approx. 400,000 transmissions
• Dimensions: 44 × 29.6 × 18.5 mm; Mass: approx. 23 g
• Operating temperature: 0°C to 40°C; Storage temperature: -10°C to 60°C
