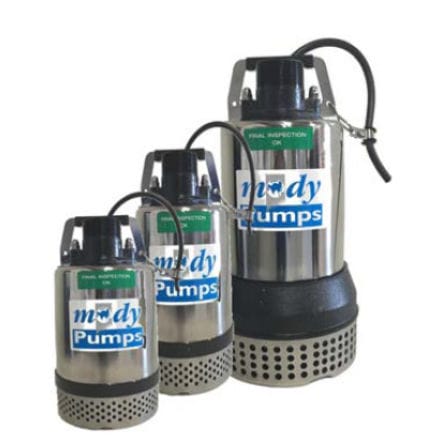

Impeller pump ‘M’ series

for cooling waterelectricsubmersible

MOTOR 2-pole induction continuous rated motor with squirrel cage rotor. Stator insulation class ‘F’ (155ºC), rated IP68. BALL BEARINGS The rotor shaft is carried in two single row, deep groove ball bearings. The bearings are enclosed with high temperature grease sealed for life. POWER CABLE Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 20ft. (6m) length standard (M0.5/M1) and 33 feet on M2. Type SJTW in North America. SHAFT SEAL Double Silicon Carbide/Silicon Carbide and Carbon/Ceramic Mechanical seals with External Oil Seal. CORROSION RESISTANT 304 SS Outer Casing 304 SS Stator Casing Cast Iron Diffuser Shaft: Heat Treated 410 Stainless Steel Hardware: 304 Stainless Steel Impeller: Cast Iron pH Range 5 – 8
