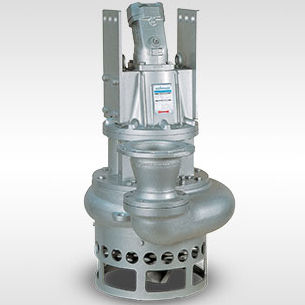

Cast iron hydraulic pump HY24 – HY85 seriesfor sludgeheavy-duty
Add to favorites
Compare this product
Characteristics
- Material
- cast iron
- Applications
- for sludge
- Other characteristics
- heavy-duty
- Pressure
300 bar, 350 bar
(4,351 psi, 5,076 psi)
Description
HYDRAULIC MOTOR
Motor displacement [cc - (cu in 20 - (1.2)
Max. oil flow rate [l/min - (USGPM 41 - (186)
Max. pressure [bar - (psi 350 - (4350)
Power [kW-HP] 24-32.5
Speed [RPM] 2000
MATERIALS
Casing Spheroidal cast iron EN-GJS-500-7 (EN 1563)
Motor housing Spheroidal cast iron EN-GJS-500-7 (EN 1563)
Wear parts High chrome EN-GJN-HV600 (XCr18) (EN 12513)
Main shaft High tensile steel 39NiCrMo3 (AISI 9840)
SEALS / LUBRICANT
Motor side seals 1 mechanical seal (silicon carbide in oil bath)
Impeller side seals 1 mechanical seal (silicon carbide in oil bath) + 4 lip seal
(2 BUNA + 2 TPU)
Oil type ISO 32
