Spool hydraulic directional control valve 30

electrically-operatedpilot-operatedpilot

Product description

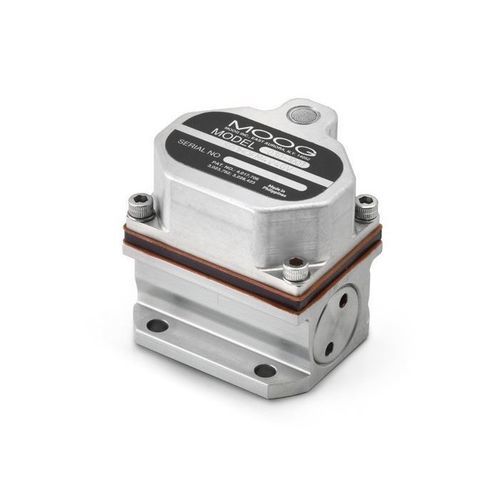

The Moog Series 30 is a two‑stage flow‑control servo valve with a dual‑nozzle and mechanical feedback, featuring a stainless steel body and an integrated torque motor in an environmentally sealed compartment. The nozzle‑flapper design delivers high responsiveness, stability and precision in a compact package.
The Series 30 is engineered for reliable long‑life operation in potentially extreme environments; supported operating temperatures range from -40 °F (-40 °C) to 400 °F (204.4 °C).

Features

• Two‑stage flow control with mechanical feedback
• Low‑friction dual‑nozzle pilot stage for high resolution and low hysteresis
• Robust construction for extreme conditions (high shock, vibration or pressure)
• Ultra‑compact, lightweight package
• High response speed for improved controllability
• Stainless steel body and integrated torque motor in an environmentally sealed compartment

Specifications
Hydraulic data
Rated flow*: 0.95 to 6.9 l/min
Standard configurations: 0.95, 1.9, 2.8, 3.8, 5.7, 6.9 l/min
Max. operating pressure: 310 bar

Performance Data
100% step response**: 2.5 ms
Frequency response***: 200 Hz

Electrical Data
Rated signal****: 10 to 40 mA
Standard configurations: 10, 20, 40 mA

Physical Data
Size (mounting pattern): Size 01 (ISO 10372-01-01-0-92)
Weight: 185 g
Additional options: Vented motor cap; reverse polarity

Notes
* @ ∆p 70 bar (1,000 psi)
** Response at 3,000 psi system pressure
*** at 90° phase lag
**** Single coil

Characteristics / Specifications

• Type: Two‑stage nozzle‑flapper servo valve with mechanical feedback
• Flow range: 0.95–6.9 l/min (standard configurations: 0.95, 1.9, 2.8, 3.8, 5.7, 6.9 l/min)
• Max. operating pressure: 310 bar
• 100% step response: 2.5 ms (at 3,000 psi system pressure)
• Frequency response: 200 Hz (at 90° phase lag)
• Electrical input signal: 10–40 mA (standard: 10, 20, 40 mA)
• Size: Size 01 (ISO 10372-01-01-0-92)
• Weight: 185 g
• Body/drive: Stainless steel body, integrated torque motor, environmentally sealed
• Operating temperature range: approx. -40 °C to 204.4 °C
• Options: Vented motor cap; reverse polarity
