Spool hydraulic directional control valve 72

poppetelectrically-operatedpilot-operated

Product overview

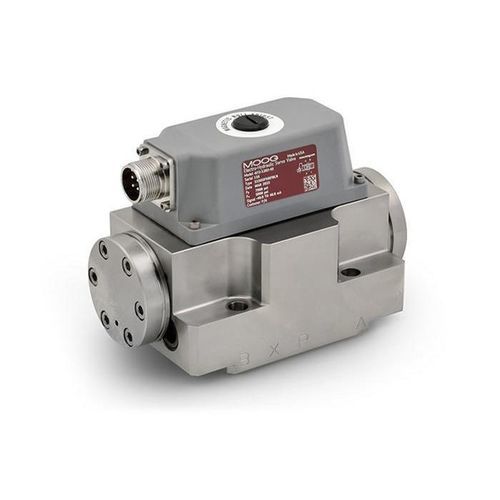

The Series 72 flow-control servovalves are throttle-style valves for 3- and preferentially 4-way applications. They feature a two-stage design covering a rated flow range of 95 to 225 l/min (25 to 60 gpm) at 35 bar (500 psi) valve pressure drop per spool land. The output stage is a closed 4-way spool. The pilot stage is a symmetric double-nozzle-and-flapper driven by a dry torque motor with double air gap. Mechanical feedback of spool position is provided by a cantilever spring.

Features

• Two-stage flow-control servovalve with mechanical feedback (MFB)
• Low-friction double-nozzle pilot stage for high dynamics, high resolution and low hysteresis
• High coil drive forces and robust construction for long service life
• Dry torque motor
• Optional fifth port for separate pilot supply
• Models available with or without filter
• Field-replaceable first-stage filter for simplified maintenance

Specifications
Hydraulic data and performance specifications are provided below.

• Rated flow*: 95 to 225 l/min
• Standard flow configurations: 95, 150, 225 l/min
• Maximum operating pressure: 210, 350 or 490 bar
• 100% step response**: 11 to 33 ms
• Frequency response***: 80 to 85 Hz
• Rated electrical signal****: 8 to 200 mA (standard: 8, 15, 40 mA)
• Mounting pattern size: Size 6 (ISO 10372-06-05-0-92)
• Weight: steel body 7.26 kg; aluminum body 3.52 kg
• Design: two-stage, closed 4-way spool; pilot stage symmetric double-nozzle and flapper; dry torque motor; mechanical feedback by cantilever spring
• Options: intrinsically safe, high null bias, magnetic null adjustment, reversed polarity, high-temperature coils, double gain

Additional notes
* @ Δp 35 bar (500 psi)/spool land
** Response at 3,000 psi system pressure
*** at 90° phase lag
**** Single coil
