Spool hydraulic directional control valve 730

pilotelectro-hydraulic

Product overview

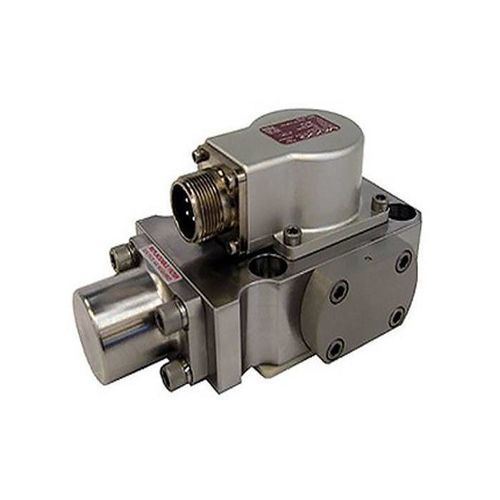

The Moog Series 730 servo valve is a two-stage flow-control valve with mechanical feedback (MFB) designed for electrohydraulic position, velocity, pressure or force control systems that require high dynamic response, stability and precision. The simple nozzle‑flapper pilot stage provides high resolution and low hysteresis, supporting accurate closed‑loop control in industrial applications.

Features

• 2-stage flow control with mechanical feedback (MFB)
• Nozzle‑flapper pilot stage for high dynamics, high resolution and low hysteresis
• High coil forces and rugged main stage construction for extended service life
• High‑pressure version available for continuous operation up to 8,000 psig
• Intrinsically safe version available for certified use in hazardous areas
• Optional X‑Port (external pilot supply) and Y‑Port (return) connections

Specifications

• Hydraulic data — Rated flow*: 4 to 66 l/min
• Standard flow configurations: 4, 10, 19, 38, 57 l/min
• Maximum operating pressure: 210, 275, 350 or 550 bar
• Performance — 100% step response**: 7 to 16 ms
• Frequency response***: 110 to 185 Hz
• Electrical data — Rated signal****: 8 to 100 mA
• Standard electrical configurations: 15 mA, 40 mA
• Physical data — Mounting size: Size 4 (ISO 10372-04-04-0-92)
• Weight: 1.0 kg
• Options: Intrinsically safe, magnetic null balance, reverse polarity, optional X‑Port and Y‑Port

Notes

• * @ ∆p 70 bar (1,000 psi)
• ** Response at 3,000 psi system pressure
• *** at 90° phase lag
• **** Single coil
