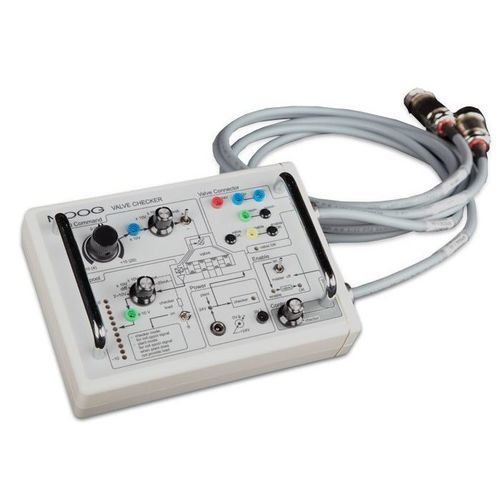

Performance tester G040-123

electrical safetyvoltagecontinuity

Overview
Valve checkers are a cost-effective method for on-site valve assessment. They provide a quick and simple way to distinguish between hydraulic and electronic issues. Different models offer varying power levels and flexibility to meet your specific requirements. All valve checkers have a compact, lightweight portable design.

Features

• Allows testing of hydraulics independently from electronics
• Field testing of most Moog Electrical Feedback (EFB) valves
• Inline operation
• Lightweight and portable
• Built-in LED spool indicator
• Fixed cables and connectors
• Models available for specific connector/power combinations
• Test points to monitor command and spool signals
• Standardised 10V representation of command and coil, regardless of actual signal type
• CE marked and compliant with EN 60204-1

Benefits

• Assists in commissioning and testing of Moog Electrical Feedback (EFB) servo valves, servo proportional valves and direct drive valves
• Fast fault identification
• Minimises machine downtime

Resources

• Product information: G040-123 Valve Checker (PDF)

Characteristics / Specifications

• Compact, lightweight portable design
• Testing of hydraulics independently from electronics possible
• Suitable for field testing most Moog EFB valves
• Inline operation possible
• Built-in LED indicator for coil
• Fixed cables and connectors; models for specific connector/power combinations
• Test points to monitor command signal and spool signal
• Standardised 10V representation of command and coil (regardless of actual signal type)
• CE marked
• Compliant with EN 60204-1
