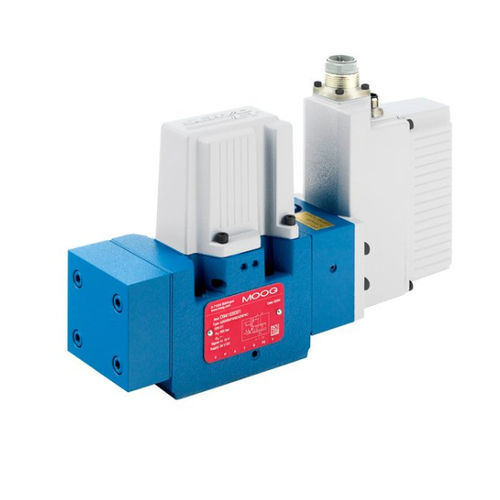

Spool hydraulic directional control valve D94x

hydraulically-operatedpilot-operatedproportional

Description
The Moog D94x series are hydraulically piloted proportional valves with integrated control electronics, an internal pressure transducer and an optional fieldbus interface. They provide pressure and flow control (p/Q) and can be configured for axis functions (position, velocity, force). Available in two- and three-stage designs and in ISO 4401 mounting sizes 05, 07, 08, 08+ and 10, they suit industrial production lines, test benches and measurement systems.

Overview

• Optimized valve body design for high nominal flow
• Integrated digital electronics with internal pressure sensor for flexible control
• Durable ServoJet pilot valves
• Excellent dynamic response through improved pilot stages
• Multiple fail-safe options for application-specific configuration

Specifications (summary)
Types: D941, D942, D943, D944, D945
Functions: Flow, Pressure, Flow & Pressure (p/Q), Axis (Position, Velocity, Force)
Mounting pattern: ISO 4401 — sizes 05 (NG10), 07 (NG16), 08 (NG25), 08+ (NG25+), 10 (NG32)
Nominal flow (ΔpN = 5 bar): 30–1500 l/min depending on model
Max. flow: up to 3600 l/min depending on model
Max. operating pressure (Ports P, A, B): up to 350 bar (Port T with external Y also up to 350 bar)
Step response (0–100%): typ. 10–44 ms depending on model
Electrical supply: 24 V DC (18–32 V DC)
Control signal options: +/-10 V, +/-10 mA, 4–20 mA
Electrical interfaces: 6+PE, 11+PE
Options: Fieldbus interface; additional analog inputs for sensors
Integrated transducers: available on A-port or A, B & P-ports

Characteristics / Technical specifications

• Product type: Hydraulically piloted servo/proportional valves with integrated control electronics
• Series name: D94x series
• Configurations: Two- and three-stage designs
• Mounting patterns: ISO 4401 (sizes 05, 07, 08, 08+, 10)
• Nominal flow (at ΔpN 5 bar): 30–1500 l/min (model dependent)
• Max. flow: up to 3600 l/min (model dependent)
• Max. operating pressure: Ports P, A, B up to 350 bar (Port T with external Y up to 350 bar)
• Step response: typically 10–44 ms (model dependent)
• Supply voltage: 24 V DC (operating range 18–32 V DC)
• Control signal options: +/-10 V, +/-10 mA, 4–20 mA
• Electrical connectors: 6+PE, 11+PE
• Optional fieldbus interfaces and additional analog sensor inputs
• Integrated sensors: available for A-port or A, B & P-ports
