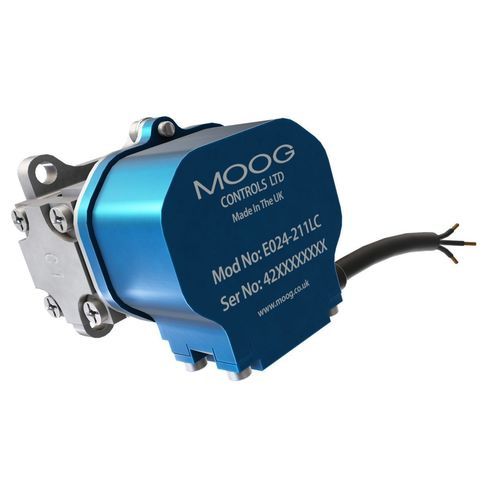

Moog 24 Series is the smallest and lightest nozzle‑flapper servo valve in its class, designed for high‑performance applications where weight, size and response are critical. The 24 Series is used across motorsport and aerospace control systems and is specified where fast, repeatable control is required. It offers a shock rating up to 50 g and an operating temperature up to 135 °C while delivering rapid and precise hydraulic control.

Features

• Ultra lightweight design — weight: 95 g (3.35 oz).
• Compact package — significantly smaller than Moog E030-series variants, facilitating integration in constrained installations.
• High flow performance — up to 7.5 l/min (1.98 USg/min) for responsive actuation.
• Aerospace‑proven reliability — derived from Moog E030 aerospace servovalve technology used in flight controls.
• Fast, precise control — rapid response and high repeatability for position, pressure and force control.
• Low input signal — 10 mA rated signal enabling efficient system integration (F1 ECU compatibility in motorsport applications).

Specifications
Hydraulic Data
Rated flow*: 0.3 to 7.5 l/min (0.1 to 2.0 USg/min)
Standard configurations: 0.3, 0.4, 1.0, 1.5, 2.0, 3.8, 5.0, 7.5 l/min (0.1, 0.3, 0.4, 0.5, 1.0, 1.3, 2.0 USg/min)
Max. operating pressure: 280 bar (4,061 psi)

Performance Data
100% step response**: 1.8 ms
Frequency response***: up to 400 Hz (at 90° phase lag)

Electrical Data
Rated signal****: 10 mA (standard configurations)

Physical Data
Size (mounting pattern): Moog standard
Weight: 95 g (3.35 oz)
Additional options: High Efficiency, Vented Motor Cap, Logic

* @ ∆p 70 bar (1,000 psi) ** Response at 3,000 psi system pressure *** at 90° phase lag **** Coils in parallel

Technical specifications

• Series / Model: 24 Series (E024)
• Rated flow range: 0.3–7.5 l/min (0.1–2.0 USg/min)
• Standard flow options: 0.3, 0.4, 1.0, 1.5, 2.0, 3.8, 5.0, 7.5 l/min
• Maximum operating pressure: 280 bar (4,061 psi)
• 100% step response: 1.8 ms (measured at specified conditions)
• Frequency response: up to 400 Hz (at 90° phase lag)
• Rated electrical signal: 10 mA (coils in parallel)
• Size / mounting: Moog standard mounting pattern
• Weight: 95 g (3.35 oz)
• Environmental capability: shock rating up to 50 g; operating temperature up to 135 °C
• Available additional options: High Efficiency, Vented Motor Cap, Logic
