Product overview

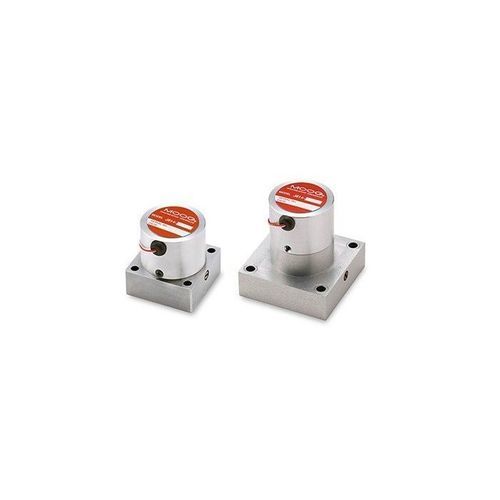

Pneumatic J814 Series servo valves are responsive and precise 3-way and 4-way pneumatic servo valves intended for pressure/power control, vibration control and position control in pneumatic systems. The 3-way versions can also be applied where vacuum is used.

The 3-way valves are single-stage and offered in standard and high-flow versions. The standard type has a rated flow of 1 ～ 50 NL/min at a valve pressure drop of 0.5 MPa; the high-flow version reaches up to 200 NL/min. A pair of nozzles and a flapper are driven by a torque motor with air gaps, providing a simple and durable design for long-term reliability.

The 4-way valves include an orifice upstream of each nozzle, providing two control ports. These single-stage valves have a rated flow of 1 ～ 14 NL/min at a valve pressure drop of 0.5 MPa.

Features

• Single-stage nozzle–flapper design with torque motor
• High resolution and low hysteresis
• Compact and lightweight
• Low power consumption
• Fast response for improved control performance
• Durable, long-life design without sliding surfaces

Specifications
Item — J814 (3-way type) — J814 (4-way type)
Rated flow (@ valve pressure drop 500 kPa) — 1 ～ 50 NL/min — 1 ～ 14 NL/min
Rated pressure — 1,000 kPa — 1,000 kPa
Range of controlled pressure — 0 ～ 1,000 kPa — 0 ～ 1,000 kPa
Supply-side pressure resistance — 1,500 kPa — 1,500 kPa
Return-side pressure resistance — 1,500 kPa — 1,500 kPa
Rated current — 0 ～ 100 mA — ±100 mA
Hysteresis — ≦3.0 % — ≦3.0 %
Operating temperature range — −10 - 60 ℃ — −10 - 60 ℃
Fluid types — Compressed air — Compressed air
Mass — Approximately 400 g — Approximately 400 g

High-flow valves with a rated flow up to 200 NL/min are available.
