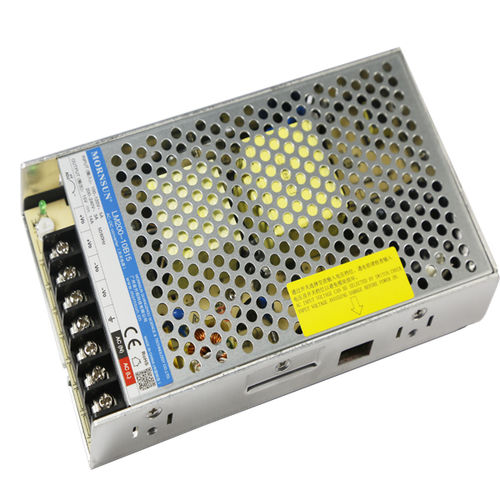

Switching power supply LM200-10BXX series
AC/DCDC/DCwith short-circuit protection

switching power supply
switching power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC, DC/DC
Other characteristics
with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection, safety, for LED lighting, for telecommunications equipment, closed frame, compact, 1U, switching, low-profile
Power

200 W, 204 W, 210 W, 211.2 W

Input voltage

Min.: 90 V

Max.: 373 V

Output voltage

5 V, 12 V, 15 V, 24 V, 48 V

Current

4.4 A, 8.8 A, 14 A, 17 A, 40 A

Description

LM200-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc. FEATURES Selectable AC input range: 90 - 132VAC/180 - 264VAC DC input range: 240 - 373VDC(Switch in position of 230) Ultra low standby power consumption < 0.75W @230VAC Operating ambient temperature range: - 30℃ to +70℃ Compact size with 1U low profile LED indicator for power on Output short circuit, over-current, over-voltage, over-temperature protection Safety according to IEC/EN/UL62368, EN60335, GB4943 Withstand 300VAC surge input for 5s (Switch in position of 230) Operating altitude up to 5000m
