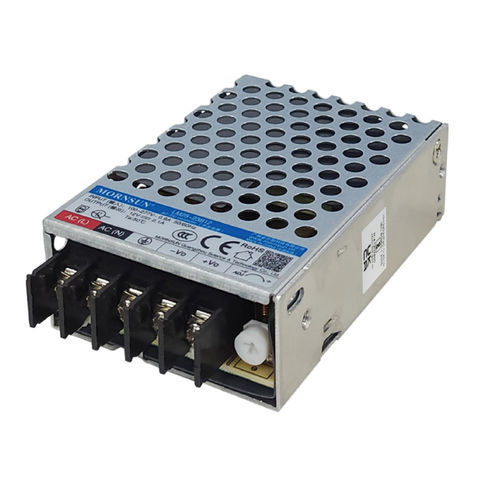

AC/DC power supply LM25-23Bxx series

single-outputswitchingwith overload protection

LM25-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc. FEATURES • - 85 - 305VAC or 100 - 430VDC input voltage • - Accepts AC or DC input (dual-use of same terminal) • - Operating ambient temperature range: -30℃ to +70℃ • - Low standby power consumption, high efficiency • - High I/O isolation test voltage up to 4000VAC • - Low ripple & noise • - Output short circuit, over-current, over-voltage protection • - Safety according to IEC/EN/UL62368, EN60335, GB4943 • - Withstand 335VAC surge input for 5s • - Over-voltage class Ⅲ (designed to meet EN61558) • - Operating altitude up to 5000m
