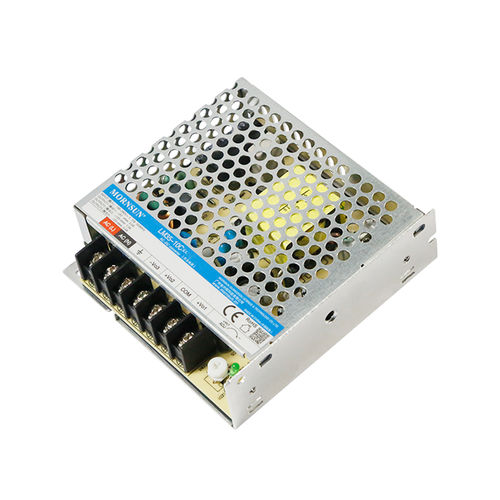

AC/DC power supply LM35-10Cxx series
triple-outputswitchingwith short-circuit protection

AC/DC power supply - LM35-10Cxx series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - triple-output / switching / with short-circuit protection
AC/DC power supply - LM35-10Cxx series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - triple-output / switching / with short-circuit protection
Add to favorites
Compare this product

Characteristics

Type
AC/DC
Output
triple-output
Technology
switching
Protection
with short-circuit protection, with overcurrent protection
Certifications
CE, ISO
Applications
for industrial applications
Other characteristics
high-performance, external
Input voltage

Min.: 85 V

Max.: 373 V

Output voltage

Min.: -15 V

Max.: 24 V

Current

Min.: 0.05 A

Max.: 1 A

Power

33 W, 35 W, 36.5 W

Description

This LM35-10Cxx series of power converter design features triple output versions, which can independently supply 3 different loadsinthesystem. The products can be used in harsh working environments with an ambient temperature range from -30℃to +70℃, without theneedof the fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000standardand meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMCprotection. Theproducts also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features andofferahigh-performance and high cost-effective providing the best power solution for a variety of industries such as industrial control equipment,instrumentation and smart home and building equipment application
