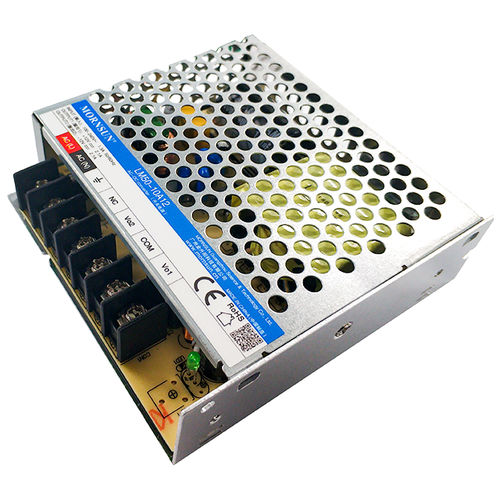

AC/DC power supply LM50-10A12

dual-outputswitchingwith short-circuit protection

This LM50-10A12 of power converter design features 2 output versions, which can independently supply 2 different loads in thesystem. Theproducts can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the needof afanforfurther heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standardandmeetemission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. Theproductsalsomeet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features andofferahigh-performance with cost-effective providing the best power solution for a variety of industries such as industrial control equipment,instrumentation and smart home and building equipment application. FEATURES  Universal 85 - 264VAC or 120 - 370VDCInput voltage  Operating ambient temperature range: -30℃to+70℃  High efficiency, high reliability and longlife  LED indicator for power on  Output short circuit, over-current, over-voltageprotection  High I/O isolation test voltage up to 3000VAC  Safety according to IEC/UL62368, EN60335, GB4943  Emissions compliant to CISPR32/EN55032 CLASSB  Withstand 5G vibration test  Operating altitude up to 5000m
