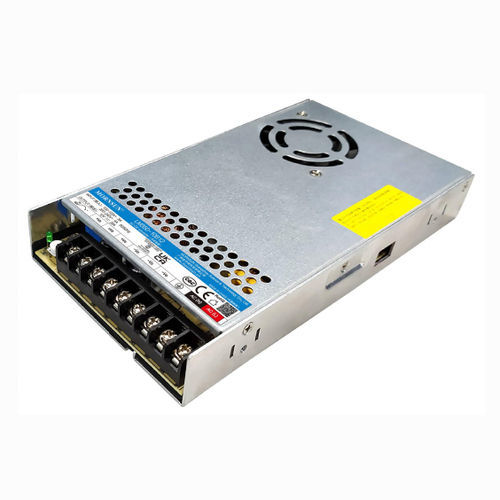

Switching power supply LM350-10BXX series
AC/DCDC/DCsingle-output

switching power supply
switching power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC, DC/DC
Output
single-output
Other characteristics
for telecommunications equipment, with overcurrent protection, with short-circuit protection, with overload protection, with overheating protection, safety, for LED lighting, switching, closed frame, compact, 1U, low-profile
Power

348 W, 349.2 W, 350 W, 350.4 W

Input voltage

Min.: 90 V

Max.: 373 V

Output voltage

5 V, 12 V, 15 V, 24 V, 36 V

Current

9.7 A, 14.6 A, 23.2 A, 29 A, 60 A

Description

LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc. FEATURES Selectable AC input range: 90 - 132VAC/180 - 264VAC DC input range: 240 - 373VDC Ultra low standby power consumption < 0.75W @230VAC Operating ambient temperature range: - 30℃ to +70℃ Compact size with 1U low profile LED indicator for power on Output short circuit, over-current, over-voltage, over-temperature protection Safety according to IEC/EN/UL62368, EN60335, GB4943 Withstand 300VAC surge input for 5s (Switch in position of 230) Built-in DC fan Operating up to 5000m altitude
