Wireless load cell transmitter WiMER11

digitalfor telemetry

Overview

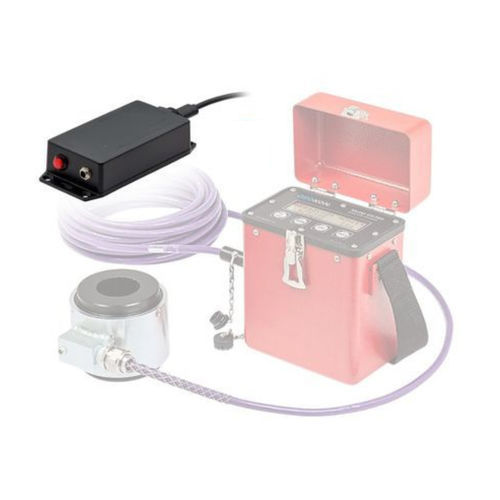

WiMER11 is a wireless transmitter that pairs with the GEOKON GK-502 readout to deliver wireless data from GEOKON Model 3000 4-wire and 6-wire full‑bridge electrical resistance strain‑gauge load cells to iOS, Android and Windows devices.

Key features

• Transmitter only; Load cell readout NOT included
• Supports load readings in lbs, kg, tons or kN
• Compatible with GEOKON Model 3000 4‑wire and 6‑wire full‑bridge load cells via the GK‑502 readout
• Wireless data capture reduces manual recording and allows safe operator distancing from test setups

Cloud remote reading option
WiMER11 integrates with the MultiGage Cloud platform — a browser‑based IoT service for remote data tracking. Functions include multi‑sensor connectivity, customizable dashboards, alerts/notifications, reading history, remote sensor control and analytics (treemaps, map view, summary). MultiGage Cloud is subscription based.

Software

• iOS: MultiGage for iOS connects to multiple devices to read and record measurements on iPhone/iPad. Apple Watch companion app shows device readings and can start/stop continuous recording or capture single readings.
• Android: MultiGage for Android supports multi‑device connectivity on Android phones/tablets.
• Windows: MultiGage for Windows (recommended with USB Bluetooth dongle) streams readings from multiple devices to a Windows PC (Win7 or later).

Included in the box

• WiMER11 base x1
• USB charging cable x1
• USB power adapter x1
• User manual x1
• COM‑109 data cable (required, sold separately)

Specifications

• Measurement range: depending on load cell
• Resolution: 1 lb (lbs), 1 kg (kg), 0.01 ton (tons), 0.01 kN (kN)
• Accuracy: ±0.1% F.S.
• Data transmission range: 65 ft (20 m) indoors / 100 ft (30 m) outdoors
• Data rate: up to 1 Hz
• Dimensions: 5.41 x 2.49 x 1.22"
• Working temperature: 32 to 122°F (0 to 50°C)
• Battery: rechargeable 3000 mAh
• Battery life: 30 hours
• Charging: 5 VDC USB
