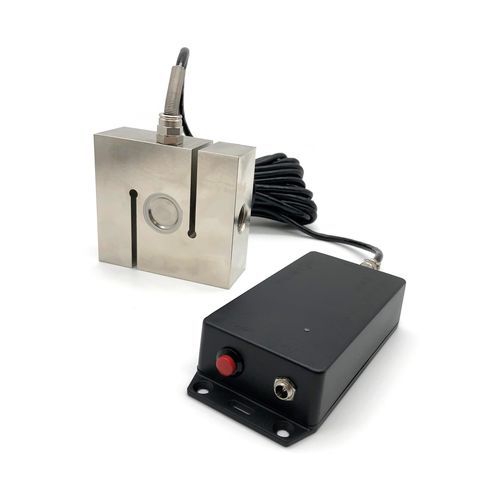

Wireless load cell transmitter WiMER9

for telemetry

Product summary
WiMER9 is a wireless transmitter designed for load cells and USB-output sensors. It collects measurements from a connected instrument and transmits them wirelessly to iOS, Android and Windows devices. The unit can also supply power to the connected instrument via USB, eliminating the need for an external power source.

Important note
Transmitter only; the measurement instrument/gage is NOT included.

Functionality and usage
WiMER9 reads data from connected sensors or gages (compatible with devices that provide a USB output) and streams real-time measurements to supported applications for viewing and recording. It supports direct connection to local devices and remote monitoring through MultiGage Cloud.

Software compatibility

• MultiGage (iOS): connect to multiple devices, view and record measurements on iPhone/iPad. Apple Watch companion app available for displaying readings and controlling recordings.
• MultiGage (Android): connect to multiple devices, view and record measurements on Android devices.
• MultiGage (Windows): stream readings from multiple devices to Windows PCs (requires USB Bluetooth dongle for PC use).
• MultiGage Cloud: browser-based IoT platform for remote monitoring, historical data and analytics; supports dashboards, alerts and remote sensor controls (subscription required).

What’s in the box

• WiMER9 base x1
• USB charging cable x1
• USB power adapter x1
• User manual x1
• BLE dongle (optional) — required for PC use

Specifications (from product table)

• Measurement range / resolution / accuracy: depend on the connected instrument
• Wireless data rate: 2 Hz
• Transmission range: 33 ft / 10 m (indoors); 100 ft / 30 m (outdoors)
• Operating temperature: 32 to 122°F (0 to 50°C)
• Dimensions: 4.09 x 2.20 x 0.91 in (104 x 56 x 23 mm)
• Rechargeable battery: 3200 mAh
• Battery life: approximately 30 hours
• Charging: 5 V DC via USB
• Compatible with sensors/gages that provide USB output
