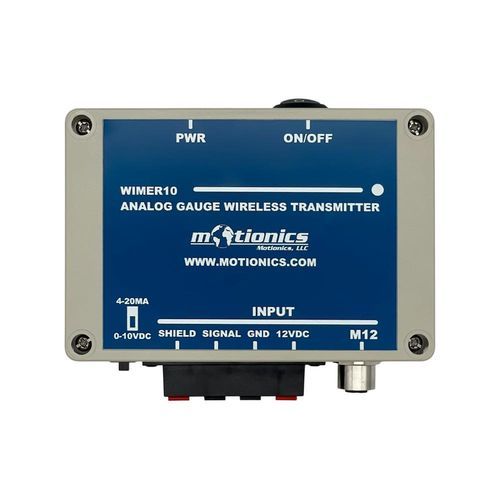

Wireless universal transmitter WiMER10

Short description
WiMER10 is a universal wireless transmitter for reading analog signals from sensors with 4-20mA or 0-10V outputs. The input type is selectable via a slide switch on the unit. The device uses a 16-bit ADC to provide high-resolution measurements and transmits data over Bluetooth Low Energy for mobile and PC integration.

Connectivity
WiMER10 streams readings to iPhone, iPad, Android devices and Windows PCs (PC use requires a USB Bluetooth Low Energy dongle). Data can be read in real time via the MultiGage mobile apps or through a MultiGage Cloud gateway for remote access.

Upgrade option
Available as a WiMER10 Kit that includes a protective carrying case with custom laser-cut foam to secure the device during transport and storage.

Cloud Remote Reading Option
WiMER10 integrates with the browser-based MultiGage Cloud platform for remote monitoring. By connecting Bluetooth devices to a MultiGage Cloud Gateway you can view real-time readings, historical data and alerts from any web browser. Key features include multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history, remote sensor controls and analytics tools (treemaps, map view, summary view). MultiGage Cloud is a subscription service.

Software
iOS

• MultiGage for iOS: connect to multiple WiMER devices and read/record measurements wirelessly on iPhone or iPad.
• Apple Watch compatible: companion app displays device readings and can start/stop continuous recording or capture single readings from the wrist.

Android

• MultiGage for Android: connect to multiple devices on Android phones and tablets to read and record measurements wirelessly.

Windows

• MultiGage for Windows: stream readings from multiple devices to a Windows PC (requires a USB Bluetooth Low Energy dongle for PC connectivity).

MultiGage Cloud
MultiGage Cloud connects Bluetooth wireless sensors to the Internet for remote, browser-based monitoring and industrial workflows.

Included — What’s in the box

• WiMER10 Base x1
• 5V DC USB-C charging cable x1
• USB power adapter x1
• User manual x1
• BLE dongle (optional) — required for PC use
• Extended warranty (optional)
• Protective carrying case (optional)

Technical specifications

• Input type: 4-20mA / 0-10VDC
• Resolution: 16-bit ADC
• Wireless data rate: 10 Hz
• Wireless transmission range: 66 ft / 20 m (indoor); 100 ft / 30 m (outdoor)
• Dimensions: 4.92 x 3.35 x 2.17 in (125 x 85.1 x 55.1 mm)
• Operating temperature: 32 to 122 °F (0 to 50 °C)
• Rechargeable battery: 3000 mAh
• Battery life: ~30 hrs (depends on measurement frequency and connected gauge)
• Charging: 5 V DC via USB-C
