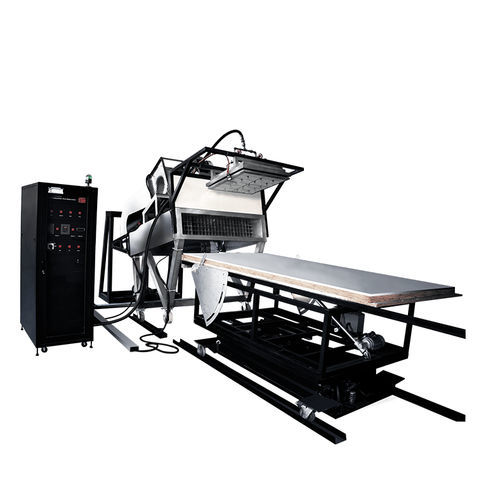

Thermal radiation testing device RTA-1187-3

automaticfor roofing materialsradiant panel

Compliance ENV 1187 Test 3, ISO 12468, EN 13501-5 The ENV 1187 Roofing Test 3 Device is designed to determine the performance of roofing materials exposed to external radiant heat sources and flame. ENV 1187 describes four test methods: And, the tests listed above are independent and not substitutable with each other. • Test 1, 2, 3 assess the flame spread across the external surface of the roof. • Test 1, 3, 4 assess the penetration of the flame and the generation of burning molten droplets. • Test 2, 3 are not applicable to geometrically irregular roofing materials or roof-mounted equipment such as ventilation units and roof lights. Features: • The test stand is made of welded metal tube, which is coated with black painting for long life use. • The test stand position can be adjusted by the pneumatic cylinder. • The angle of the test stand can be adjusted from 0 to 50 degrees, which meets the requirements of ISO 12468 and ENV 1187. • The duct is made of stainless steel and with grilles in the duct and outlet. • The duct can be automatically adjusted the angle from 0 to 35 degrees. • With a blower to provide airflow up to 250m3/min. • With an anemometer to measure the airflow, with an accuracy of 0.1m/s. • The radiant panel dimension is 600mm by 600mm, can provide the radiant heat up to 15 kW/m2. • Provide a heat flux meter to measure the radiant heat flux. • Provide pilot flame burner, and gas control unit. • Provide a control cabinet, with the gas control device, control unit, and display meters.
