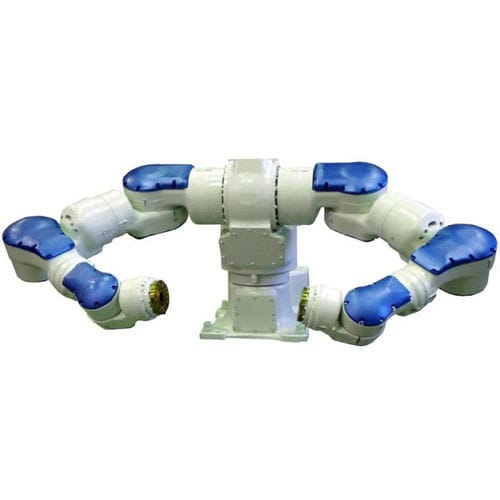

Articulated robot SDA20F
15-axishandlingfor assembly

articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
15-axis
Function
handling, for assembly, packaging, loading, transfer
Mounting
floor-mounted
Protection level
IP54, IP67, IP65
Other characteristics
self-learning
Payload

20 kg
(44.092 lb)

Reach

910 mm, 1,820 mm, 2,590 mm
(35.83 in, 71.65 in, 101.97 in)

Repeatability

0.1 mm
(0.0039 in)

Weight

380 kg
(837.8 lb)

Description

Powerful actuator-based design provides “human-like” flexibility and fast acceleration. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.

Catalogs

SDA20F
SDA20F
2 Pages
