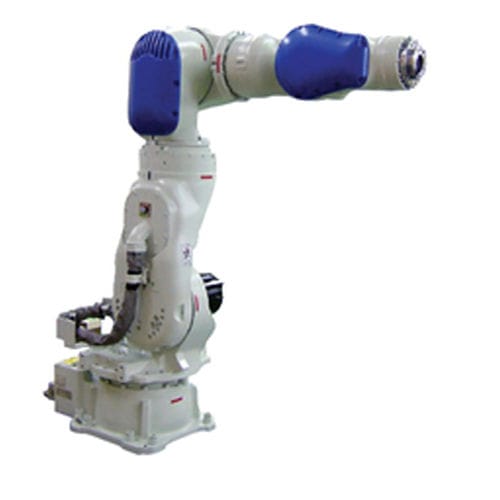

Articulated robot SIA50D7-axispackagingfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 7-axis
- Function
- packaging, for assembly, spark optical emission, injection
- Mounting
- floor-mounted, ceiling-mounted, wall-mounted
- Application domain
- for injection molding machines
- Other characteristics
- compact
- Payload
50 kg
(110.231 lb)- Reach
1,630 mm, 2,597 mm
(64.17 in, 102.24 in)- Repeatability
0.1 mm
(0.0039 in)- Weight
640 kg
(1,411 lb)
Description
Amazing agility for a 50kg payload: This articulated robot is ideal for assembly, injection molding, inspection, machine tending and a host of other operations. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.
Catalogs
SIA50D
2 Pages
