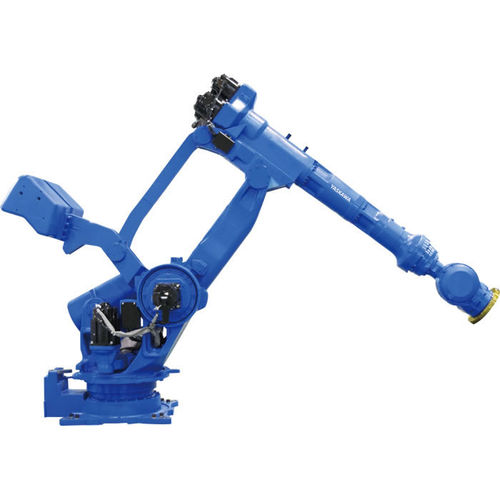

Articulated robot GP400
6-axishandlingcutting

articulated robot
articulated robot
Add to favorites
Compare this product

Characteristics

Type
articulated
Number of axes
6-axis
Function
handling, cutting
Other characteristics
floor-mounted
Payload

Max.: 400 kg (881.849 lb)

Min.: 0 kg (0 lb)

Reach

2,898 mm, 2,942 mm (114.09 in)

Repeatability

0.3 mm (0.01181 in)

Description

Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP400 is ideal for machine and press tending, as well as “jigless” applications. Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts. A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floorspace. Equipped with heavy-duty bearings for smooth arm rotation, the GP400 is a smart choice to fulfill a variety of heavy-payload needs.
