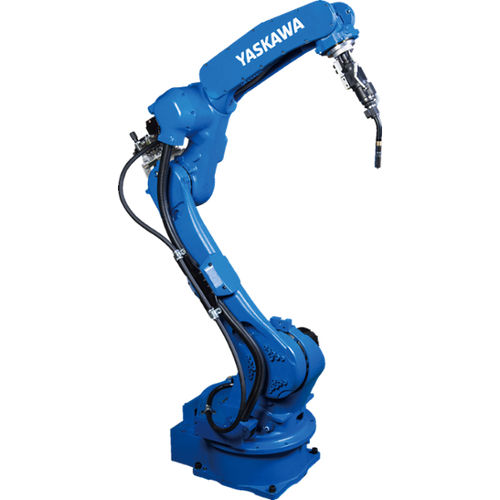

Articulated robot AR1730
6-axisarc weldinghigh-speed

articulated robot
articulated robot
Add to favorites
Compare this product

Characteristics

Type
articulated
Number of axes
6-axis
Function
arc welding
Other characteristics
high-speed, floor-mounted, ceiling-mount, wall-mounted
Payload

Max.: 25 kg (55.116 lb)

Min.: 0 kg (0 lb)

Reach

1,730 mm, 3,089 mm (68.11 in)

Repeatability

0.06 mm (0.00236 in)

Description

The six-axis AR1730 robot provides fast and accurate performance for a range of arc welding applications. While a slim profile allows for high-density robot placement, a contoured arm gives easy access to parts in close spaces, avoiding potential fixture interference. An extensive robot reach accommodates a wide variety of parts. The AR1730 has a patented double-yoke upper arm, and it utilizes a symmetric wrist with a substantial range, providing equal torch access to both sides of a part. A 50 mm thru-hole reduces cable wear and interference.
