Articulated robot SDA10F
15-axishandlingfor assembly

articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
15-axis
Function
handling, for assembly, packaging, transfer
Mounting
floor-mounted
Protection level
IP54, IP67, IP65
Other characteristics
compact, high-speed
Payload

10 kg
(22.046 lb)

Reach

720 mm, 1,440 mm, 1,970 mm
(28.35 in, 56.69 in, 77.56 in)

Repeatability

0.1 mm
(0.0039 in)

Weight

220 kg
(485 lb)

Description

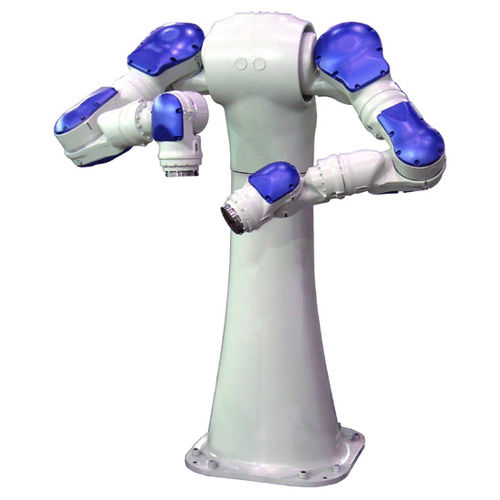

The SDA10F is a dual-arm, 15-axis robot with incredible dexterity, freedom of movement in a compact footprint. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make this slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.

Catalogs

SDA10F
SDA10F
2 Pages
