Articulated robot GP76-axishandlingfor assembly

articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product
indicative price

Characteristics

Type
articulated
Number of axes
6-axis
Function
handling, for assembly, packaging
Other characteristics
high-speed, compact, floor-mounted, ceiling-mount, wall-mounted
Payload

Min.: 0 kg (0 lb)

Max.: 7 kg (15.432 lb)

Reach

727 mm, 927 mm, 1,312 mm, 1,693 mm (28.62 in)

Repeatability

0.02 mm, 0.03 mm (0.00079 in)

Description

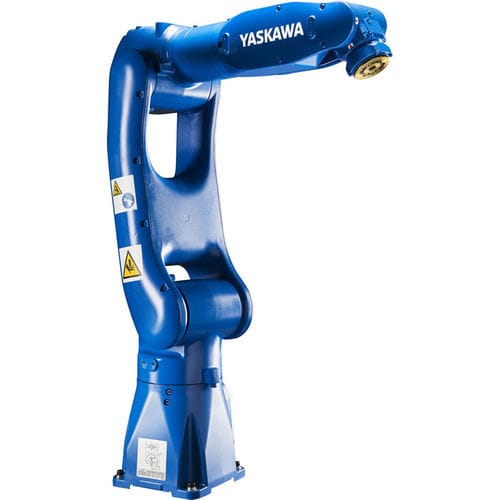

Ideal for high-speed assembly and handling applications, the GP7 robot is fast, compact and efficient. Offering the highest payload, fastest speed and highest wrist allowable moment in its class, this robot is controlled with the YRC1000 controller and can be programmed with the lightweight standard teach pendant or the easy-to-use touchscreen Smart Pendant. The GP-series robots offer improved acceleration/deceleration control for all robot positions resulting in overall improved productivity. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. This enables the GP-series robots to be placed in close proximity to workpieces and other robots to create flexible, high-density layouts. Installation is quick and efficient. A single cable is all that is needed to connect the manipulator to the controller, resulting in easy setup and reduced expenses for maintenance and spare parts inventory. The GP7 robot is compatible with the YRC1000 Controller or the YRC1000micro Controller as well as the standard teach pendant or the Smart Pendant.
