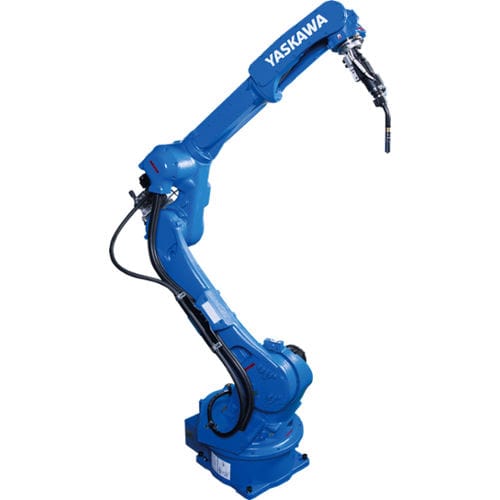

Articulated robot AR2010
6-axisarc weldingfloor-mounted

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
arc welding
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Payload

12 kg
(26.455 lb)

Reach

2,010 mm, 3,649 mm
(79.13 in, 143.66 in)

Repeatability

0.03 mm
(0.0012 in)

Weight

260 kg
(573.2 lb)

Description

Ideal for welding agricultural equipment, automotive frames or construction machinery, the new AR2010 robot offers fast and powerful performance for arc welding applications. While the streamlined arm design gives easy access to parts in confined places, the slim robot profile permits close robot placement for high-density weld cells. Improved axis composite speed and expanded wrist range optimize robot functionality, and a symmetric wrist provides equal access to both sides of a part. A 50 mm thru-hole reduces cable interference and wear, and an enhanced feeder mounting area on the arm reduces equipment obstruction.
