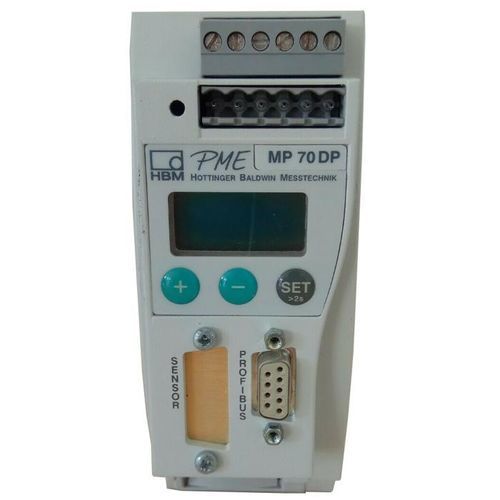

Telemetry gateway MP70DP

communicationindustrialCANopen

Product overview
MP70DP is an 8-channel measurement module that acts as a gateway between CANopen and Profibus DP networks. It is designed to integrate PME measurement amplifiers and route sensor signals to fieldbus systems.

Features

• 8 measurement channels
• CANbus interface (CANopen)
• Profibus DP interface
• Analog outputs: configurable current (mA) and voltage (V)
• 4 digital inputs
• 4 digital outputs
• Configuration via PME Assistant or front-panel buttons

Applications

• Integration of sensors and transducers in industrial automation
• Data acquisition and protocol gateway between CANopen and Profibus DP
• Process monitoring, control and machine integration

Technical specifications

• Model: MP70DP
• Channels: 8
• Function: Gateway between CANopen and Profibus DP
• Interfaces: CANopen, Profibus DP
• Analog output: current and voltage
• Digital inputs: 4
• Digital outputs: 4
• Operation: PME Assistant or front-panel buttons
• Article number: MP70DP
• Availability: In stock
