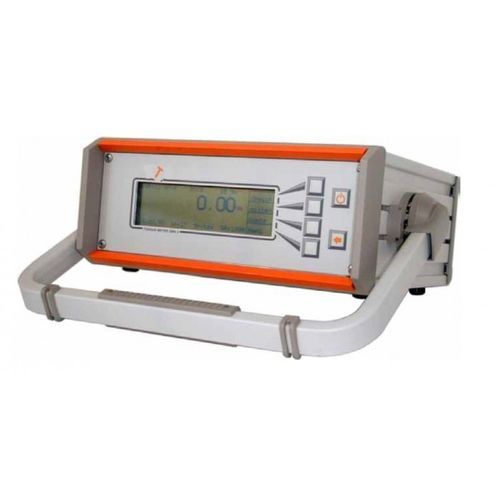

Portable torque meter GMfor torque and angle measurementfor screwdriverfor power tools
Add to favorites
Compare this product
Characteristics
- Type
- portable
- Applications
- for screwdriver, for torque and angle measurement, for power tools
- Other characteristics
- electronic, battery-powered, with external sensor, with data logger
Description
Description
Main functions
Additional equipment
Characteristics / Specifications
- Test instrument for production control and bench evaluation
- Supports documentation compliant with DIN EN ISO 9001
- Designed for quality assurance and process verification
Main functions
- Three-level password protection
- Automatic sensor detection and parameter verification for transmitters with integrated chip
- Measurement of torque, speed and power
- Tracking mode with:
- adjustable filters for torque and speed
- power measurement range from 1 mW to 20,000 kW
- RS232C port up to 19200 baud
- EMS-sealed enclosure
- Mains operation 100–240 V
Additional equipment
- External selection of parameter sets
- Login with barcode scanner
- External control for memory, erase and print functions
- Angle measurement
- Control of electric screwdrivers with separate power unit
- Analog output for torque signal
- Built-in charger and power supply (battery life approx. 8 hours)
- Input signal for DRDL with two measurement ranges
- Data export to MS-Excel via supplied data transfer software
Characteristics / Specifications
- Product name: GM Multifunction Torque Meter
- Reference: GM multifunction torque meter
- Availability: In stock
- Measured quantities: torque, speed, power
- Power measurement range: 1 mW to 20,000 kW
- Communication: RS232C up to 19200 baud
- Power supply: Mains 100–240 V; built-in charger and power supply; battery life approx. 8 hours
- Enclosure: EMS-sealed
- Safety features: three-level password protection
- Additional interfaces/functions: analog torque output; DRDL input (two ranges); barcode-scanner login; external memory/erase/print control; control for electric screwdrivers; angle measurement
- Data export: Supports transfer to MS-Excel via supplied software
