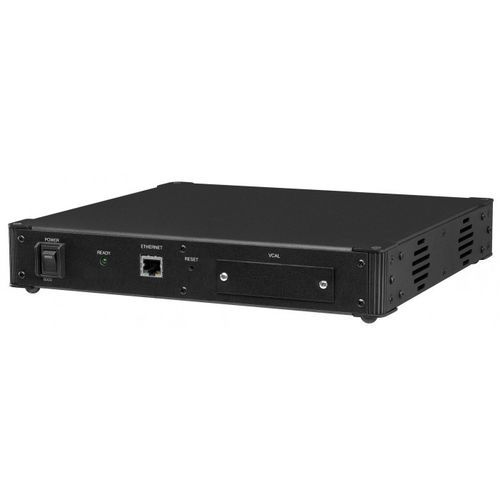

Voltage data acquisition system MTS-8000

temperaturerack-mountbenchtop

Product description
MTS-8000 is a multifunctional instrument for precise data acquisition, designed for static and dynamic testing as well as integration with measurement systems. The device provides 8 data acquisition channels. Each channel can be configured via software to acquire signals from strain gauges or transducers, high‑level voltage sensors or thermocouples. Strain‑gauge channels accept full, half or quarter bridge configurations and include accessories for 120 Ω, 350 Ω and 100 Ω bridges. Data are processed by a modern 32‑bit digital signal processor and filtered with multi‑stage finite impulse response (FIR) filters to ensure effective noise suppression and reliable measurement accuracy.

Supported sensor types

• Load cell (quarter, half and full bridge)
• Strain gauges
• High‑level voltage signal sensors
• Thermocouples

Main features

• 8 channels with differential inputs
• 32‑bit digital signal processor, 300 MHz
• Configurations: desktop, composite, rack‑mount
• Sampling rates per channel: 1000, 500, 200, 100 or 10 samples/s
• Ethernet interface: IEEE 802.3 / 802.3u (10Base‑T, 100Base‑TX); half/full duplex, auto negotiation. RJ45 connector with green LINK/ACT LED
• Multi‑stage FIR filtering for noise reduction

Technical specifications

• Channels: 8 data acquisition channels
• Signal processing: 32‑bit digital signal processor, 300 MHz
• Bridge configurations: full, half or quarter bridges; accessories for 120 Ω, 350 Ω and 100 Ω
• Sampling rates per channel: 1000 / 500 / 200 / 100 / 10 samples/s
• Interface: Ethernet (IEEE 802.3 / 802.3u), RJ45, Auto‑MDI/MDIX, half/full duplex
• Operating temperature: 0 °C to +50 °C
• Humidity: up to 90% non‑condensing
• Power supply: 10–32 V, maximum 5 A
• Dimensions: 43.688 x 279.4 x 258.661 mm
• Weight: 1.75 kg
