Vision processing measuring system MTS-7000

electronictubefor calibration

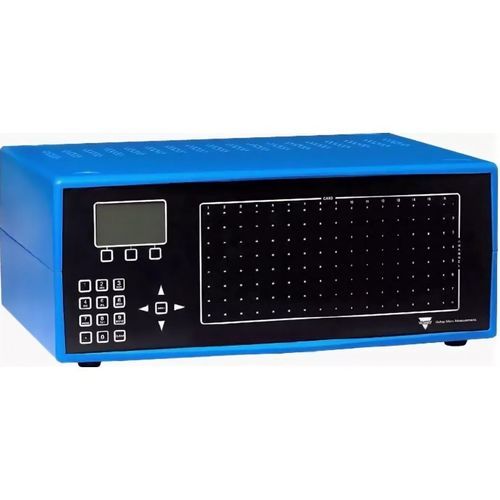

Universal data acquisition and processing system MTS-7000

Overview:
The MTS-7000 is a universal data acquisition and processing system designed for static and dynamic measurements with an accuracy of ±0.05% of full scale. Each sensor card integrates a 24-bit analog-to-digital converter with a resolution of 0.5 µm/m. An analog filter combined with a flexible digital FIR filter provides smoothing. Digital bridge selection supports load cells of 120 Ω, 350 Ω and 1000 Ω. The unit can be automatically calibrated using a removable reference source.

Main features:

• Capacity up to 16 input cards, maximum 128 channels.
• Mounting options: 19-inch rack or desktop version.
• Display: 64 x 128 LCD with white screen and LED backlight.
• LED status panel: 128 separate red/green LEDs, one per channel.
• Ethernet: IEEE 802.3, 802.3u, 10 Base-T, 100 Base-TX, half- and full-duplex, auto-negotiation.
• Processor: 250 MHz.
• Memory: 64 MB SDRAM.
• Operating environment: -10 °C to +45 °C; humidity up to 90% non-condensing.
• Power supply: 11–32 V DC, max. 30 A.
• Dimensions: 178 x 445 x 340 mm.

Additional information:
Item no.: Data acquisition and processing system MTS-7000

Technical characteristics / specifications:

• Accuracy: ±0.05% of full scale.
• ADC: 24-bit analog-to-digital converter per sensor card.
• Resolution: 0.5 µm/m.
• Filters: Analog filter combined with flexible digital FIR filter for smoothing.
• Bridge selection (digital): Support for 120 Ω, 350 Ω and 1000 Ω load cells.
• Automatic calibration possible with removable reference source.
• Maximum channels: Up to 128 (up to 16 input cards).
• Display: 64 x 128 LCD with LED backlight.
• LED status panel: 128 separate red/green LEDs, one per channel.
• Communication: Ethernet (10/100 Base-T), half-/full-duplex, auto-negotiation.
• CPU: 250 MHz; RAM: 64 MB SDRAM.
• Operating temperature: -10 °C to +45 °C; humidity: up to 90% non-condensing.
• Power supply: 11–32 V DC, max. 30 A.
• Enclosure / Dimensions: 178 x 445 x 340 mm; mounting options: 19-inch rack or desktop.
