Digital oscilloscope U1600A

hand-held2-channelUSB

Description

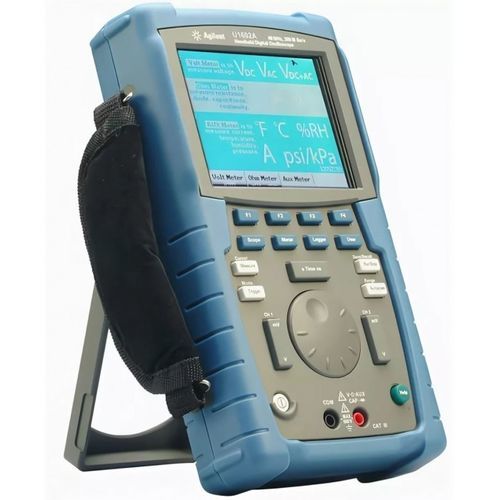

The U1602A handheld digital oscilloscope (Agilent Technologies) combines a 2‑channel oscilloscope, a true‑RMS digital multimeter and a real‑time data logger in a compact portable instrument. It is suitable for diagnostics, maintenance and QC tasks in industrial and automotive environments.

Key features of the U1602A

• 11.4 cm (4.5-inch) color LCD for clear channel distinction
• Bandwidth up to 40 MHz with an advanced trigger system
• Sampling rate up to 200 MS/s
• Memory depth up to 125,000 points per channel
• True‑RMS digital multimeter with up to 6000 counts and 22 auto measurements
• 11 built‑in DMM functions including AC/DC voltage, resistance and diode/continuity tests
• Channel math and scaling, FFT with multiple window options
• PC Link software and high‑speed USB 2.0 for data transfer
• Optional USB flash storage for saving settings and waveforms
• Multilingual help system

Applications and use
The U1602A is designed for on‑site troubleshooting, installation verification and periodic maintenance. Technicians can quickly analyze time‑ and frequency‑domain signals using channel math and FFT functions. The integrated true‑RMS DMM supports fast, accurate voltage, resistance and other measurements required for field service and production testing.

Oscilloscope functions

• Deep memory for long‑record waveform capture (up to 125,000 points/channel)
• Autoscale for fast automatic display adjustment
• Math operations on two channels (addition, subtraction) and FFT with rectangular, Hanning, Hamming and Blackman‑Harris windows
• Cursor measurements for manual or automatic sampling point setting
• 22 automatic measurements with simultaneous display of multiple results
• Advanced trigger modes: differential, pulse width, code combination and video
• PC Link for capture, storage and documentation via USB
• Optional USB flash for saving and loading signals and settings (up to 10 items)

Data logger mode
In data logger mode the user can configure sampling sequences for any DMM measurement type and combine recorded samples into sequences for logging and analysis during design verification or field data collection.

Technical specifications

• Device type: handheld digital oscilloscope + true‑RMS DMM + real‑time data logger
• Model/series: U1602A (U1600A series)
• Display: 11.4 cm (4.5 in) color LCD
• Channels: 2
• Bandwidth: up to 40 MHz
• Sampling rate: up to 200 MS/s
• Memory depth: 125,000 points per channel
• Digital multimeter: true RMS, up to 6000 counts
• Automatic measurements: up to 22 types
• Built‑in DMM functions: 11 functions (AC/DC voltage, resistance, capacitance, diode, continuity, temperature, current, etc.)
• Math: two‑channel scaling, addition/subtraction, FFT with multiple window options
• Triggers: differential, pulse width, code combination, video
• Interfaces: high‑speed USB 2.0, PC Link software included, optional USB flash
• Save/recall: up to 10 waveforms and device settings
• Help: multilingual
• Availability: in stock (check supplier)
