Paperless recorder P3

universaldisplaydata logger

Product overview

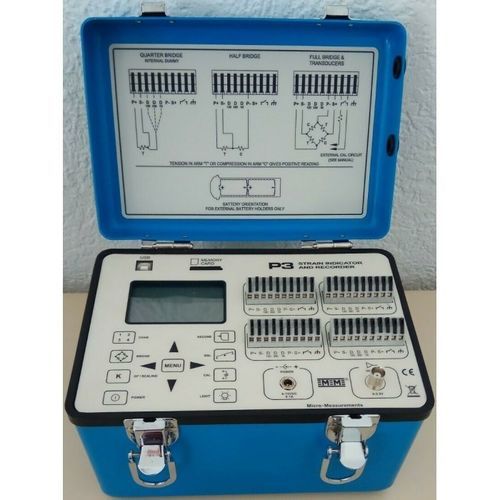

The Strain Indicator and Data Logger model P3 is a portable, battery-powered instrument that accepts four inputs from quarter-, half- and full-bridge strain gauge circuits, including strain-gauge-based transducers. Waterproof eyelets in the flip lid allow securing connection leads when the lid is closed.

Operation and configuration
The P3 uses a large LCD for setup and data readout and provides an intuitive, menu-driven interface accessed via the front keypad. Configurable options include active input channels, bridge configuration, measurement units, bridge completion, calibration method and recording parameters.

Data recording and transfer
Measurements recorded at a user-selectable rate of up to 1 sample per channel per second are stored on a removable flash card. Data are transferred via USB to a host computer and can be saved, reduced and plotted using the supplied software.

Features

• Four input channels
• Direct LCD readout
• On-board removable flash memory
• Analog output 0 to 2.5 VDC
• Quarter-, half- and full-bridge compatibility
• Bridge completion capability
• Supports 120 Ω, 350 Ω and 1000 Ω dummy resistors
• Automatic zeroing and calibration
• Intuitive menu-driven operation
• USB data connection
• Operable via front keypad or PC
• Portable and lightweight
• Battery, USB or mains power options

Technical specifications

• Item no.: P3
• Availability: In stock
• Number of inputs: 4 (compatible with quarter-, half- and full-bridge)
• Display: Large LCD
• Recording rate: Up to 1 sample per channel per second (user-selectable)
• Data storage: Removable flash card (on-board memory)
• Data transfer: USB to host computer; supplied software for storage and plotting
• Analog output: 0 to 2.5 VDC
• Supported dummy resistors: 120 Ω, 350 Ω, 1000 Ω
• Functions: Automatic zero, calibration, bridge completion, menu-driven configuration
• Operation: Front keypad or via PC
• Power supply: Battery, USB or mains
• Enclosure/handling: Portable, lightweight; waterproof eyelets in flip lid to secure connection leads
