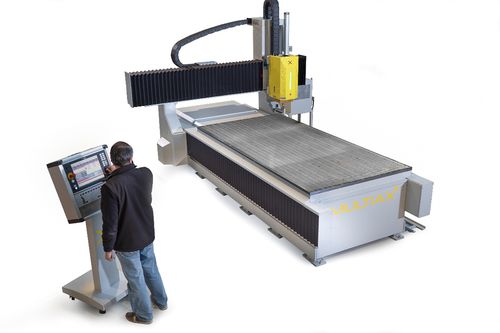

3-axis CNC machining center N-TECH series
5-axis4-axisvertical

3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis, 5-axis, 4-axis
Spindle orientation
vertical
Structure
mobile gantry, with fixed table
Machined material
for aluminum, for composites
Applications
for the automobile industry, for the aeronautical industry, for aeronautics, for titanium, for the aluminum industry, for sheet machining, for aluminum plates
Other characteristics
high-performance, high-speed, compact, high-precision, high-speed, rigid, modular, CE, automated loading/unloading, single-head, with control panel
X travel

3,400 mm, 4,400 mm, 6,400 mm, 7,200 mm, 9,200 mm
(134 in, 173 in, 252 in, 283 in, 362 in)

Y travel

2,200 mm, 2,700 mm
(87 in, 106 in)

Z travel

350 mm, 800 mm
(14 in, 31 in)

Rotational speed

Min.: 18,000 rpm
(113,097 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

Min.: 10 kW
(13.6 hp)

Max.: 25 kW
(33.99 hp)

Work feed X-axis

60,000 mm/min
(39 in/s)

Work feed Y-axis

60,000 mm/min
(39 in/s)

Work feed Z-axis

30 mm/min
(0 in/s)

Table load capacity

Min.: 0 kg
(0 lb)

Max.: 40,000 kg
(88,185 lb)

Positioning accuracy

Min.: 25 µm

Max.: 50 µm

Repeatability

Min.: 12 µm

Max.: 23 µm

Tool-changing time

Min.: 8 s

Max.: 16 s

Description

Technology, stiffness and accuracy to get maximum performance for milling aluminum plates and similar materials. This machine series has been studied primarily for CNC nesting processes, but it allows great possibilities of customization, that make this machine perfect for a wider range of operations. The monolithic structure of the N-Tech Series has been dimensioned for high accuracy. Its clean lines are the perfect base for optimized ergonomics, HMI and safety. Other components that contribute to the amazing performances of this machine are: - pre-loaded roller guides and ways - tool magazines with generous capacity - compact dimensions and work area protection - easily accessible loading/offloading area - advanced safety perimeter fencing or noise enclosure Most frequently machined materials: - Alluminum alloy plates - Light alloy plates - Technopolymers - Composites
