- Multiax International CNC srl

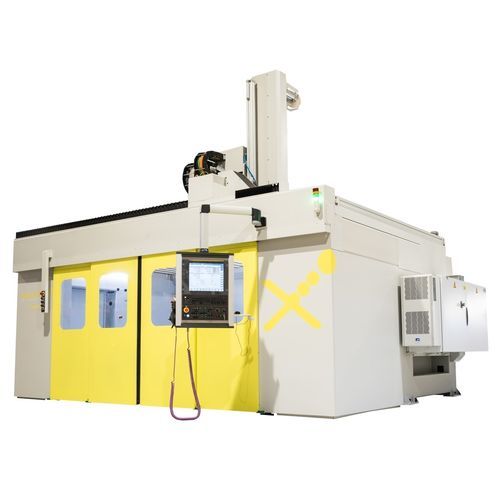

5-axis CNC machining center T with swiveling spindlefor non-ferrous metalsfor composites
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- with swiveling spindle
- Machined material
- for non-ferrous metals, for composites, for wood, for plastics, for ceramics
- Structure
- mobile gantry
- Spindle mount
- HSK A-63, HSK F63
- Number of tool stations
- 24 tools, 32 tools, 16 tools, 8 tools
- Associated functions
- milling, chamfering
- Applications
- for the automobile industry, for the aeronautical industry, for the aerospace industry, for furniture, for the plastics industry
- Other characteristics
- rigid, high-productivity, precision, variable-speed, CE, modular, with integrated pallet changer, ultrasonic, multi-spindle, two-station, single-head, medium-sized, tilting-head
- X travel
3,600 mm, 4,800 mm, 6,000 mm
(141.73 in, 188.98 in, 236.22 in)- Y travel
1,800 mm, 2,600 mm
(70.87 in, 102.36 in)- Z travel
1,200 mm, 1,400 mm
(47.24 in, 55.12 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 18,000 rpm
(113,097 rad.min-1)- Power
Max.: 15 kW
(20.39 hp)Min.: 10 kW
(13.6 hp)- Workpiece max height
Max.: 1,200 mm
(47 in)Min.: 1 mm
(0 in)- Table rotation (C axis)
Max.: 500 °
Min.: 1 °
- Work feed X-axis
Max.: 84,000 mm/min
(55.12 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 84,000 mm/min
(55.12 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
Max.: 60,000 kg
(132,277 lb)Min.: 0 kg
(0 lb)- Tool weight (max)
Max.: 15 kg
(33.1 lb)Min.: 0 kg
(0 lb)- Positioning accuracy
Max.: 50 µm
Min.: 25 µm
- Repeatability
Max.: 25 µm
Min.: 12 µm
- Tool-changing time
Max.: 16 s
Min.: 8 s
- Weight
Max.: 20,000 kg
(44,092.45 lb)Min.: 7,000 kg
(15,432.36 lb)- Overall length
Max.: 10,000 mm
(393.7 in)Min.: 7,500 mm
(295.3 in)- Overall height
4,500 mm
(177.2 in)
Description
Multiax has developed a 5-axis machining center for fast and accurate machining of complex 3D surfaces which are generally used in the plastic and composites industry.
The T SERIES is productive, reliable, and easy to use. It is built to exceed the customer's expectations. This is possible thanks to the rigid construction frame and the mechanical components which lead to greater axis squareness, speed and positioning accuracies.
The mechanical structure has been tested with Finite Element Analysis software to simulate extreme stress and heavy usage, and also to check the base sturdiness.
