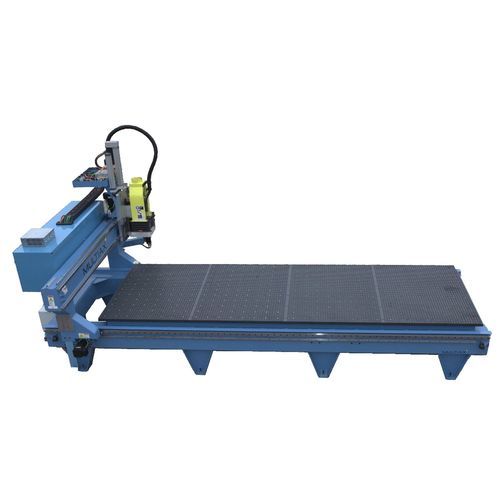

3-axis CNC machining center NE4-axisverticalfor composites
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 4-axis
- Spindle orientation
- vertical
- Machined material
- for composites, for wood, for plastics
- Structure
- mobile gantry, with fixed table
- Number of spindles
- 2-spindle
- Number of tool stations
- 16 tools, 12 tools, 8 tools
- Associated functions
- engraving
- Applications
- for the automobile industry, heavy-duty, for the aerospace industry, for furniture
- Other characteristics
- compact, high-rigidity
- X travel
Max.: 5,150 mm
(202.76 in)Min.: 2,600 mm
(102.36 in)- Y travel
Max.: 2,150 mm
(84.65 in)Min.: 1,525 mm
(60.04 in)- Z travel
Max.: 600 mm
(23.62 in)Min.: 400 mm
(15.75 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 18,000 rpm
(113,097 rad.min-1)- Power
20 ch
(20 hp)- Work feed X-axis
70,000 mm/min
(45.93 in/s)- Work feed Y-axis
70,000 mm/min
(45.93 in/s)- Work feed Z-axis
20,000 mm/min
(13.12 in/s)
Description
The NE Series machining centers are designed and built in the United States, can be custom configured to offer broad industry applications. NE Series features a compact CNC machining center with heavy-duty moving bridge structure, extra rigid construction, and is tailored to enable even the most intricate of jobs to be rapidly, reliably, and flawlessly executed. Configuration options include integrated tool touch off, point-to-point drill units, twin independent spindles, ultra-sonic cutting, 8-24 tool carousel, up to 20hp spindle motor, up to 600 mm (26") Z Axis Travel, multiple table sizes, custom table fixtures, auto loading and unloading roller-hold down, vacuum pumps, etc.
